BluCube BCK80 Ceiling Speaker (8" Pair)
BluCube BCK80 Ceiling Speaker (8" Pair)
Couldn't load pickup availability

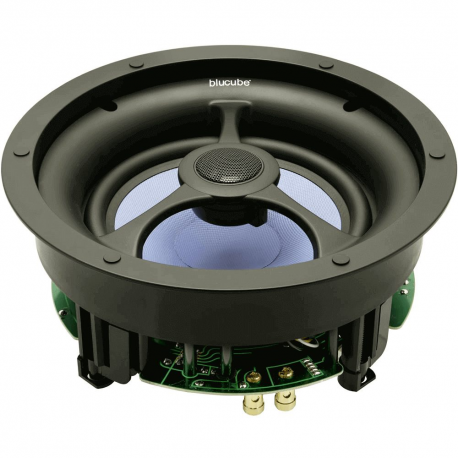

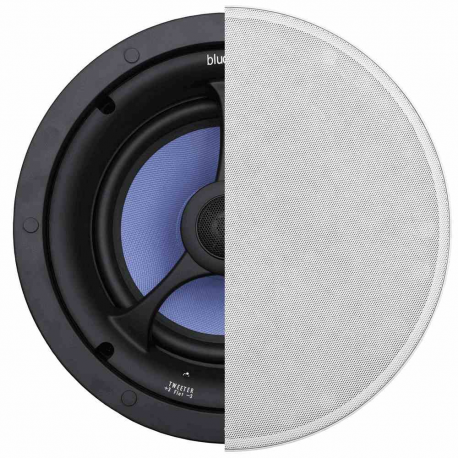

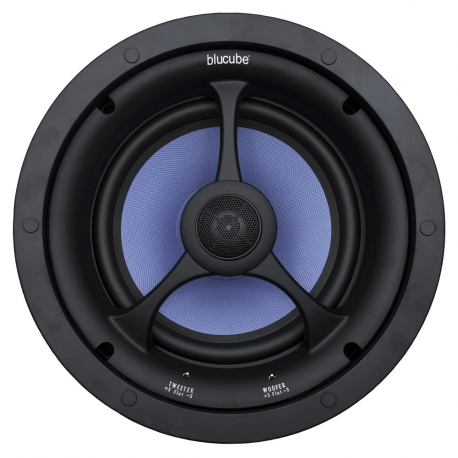

The BCK80 is the highest performance in-ceiling speaker in the Blucube range. A two-way design featuring larger 200mm (8in) Kevlar bass/ mid range driver and a 1″ titanium tweeter this speaker offers a solution where more depth of sound is desired or where installation in a larger room is required.
Woofer: 8″ woven Kevlar, 1.25″ voice coil, 25 oz magnet, bumped back plate, vented pole piece
Tweeter: 1″ titanium dome, ferro-fluid cooled, 30° swivel and pivot, neodymium magnet

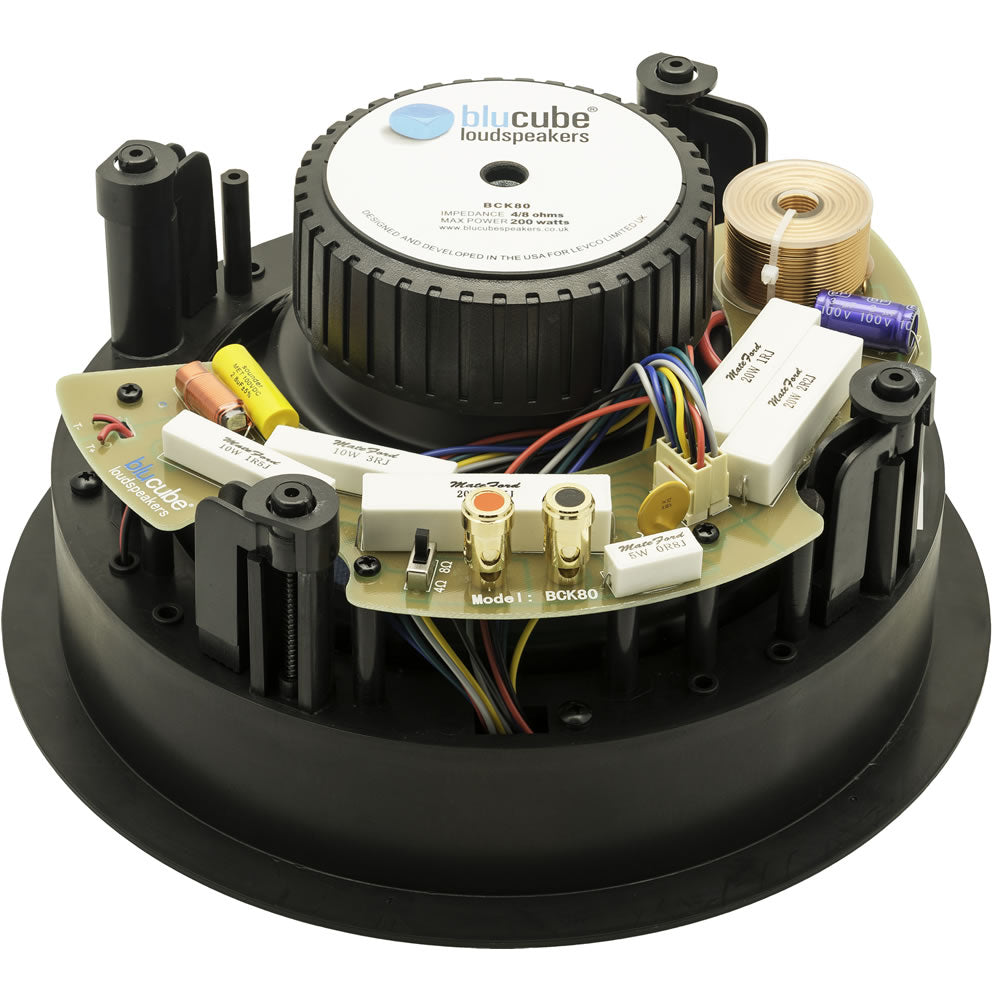

Crossover: FR4 board with 18dB per octave network, +/- 3dB attenuation switches on woofer & tweeter 4ohm/8ohm switchable on PCB, Polyimide switch-auto protect reset switch, 14AWG connection to woofer section. Gold Plated terminals will accept 14AWG wire
Features
Adjustable Impedance: The 4ohm/8ohm switch on the PCB offers flexibility for matching power output and impedance, optimizing system performance.
Stable Mountings: The two-piece baffle design allows direct tweeter mounting on the bridge, enhancing power handling and reducing harmonic distortion.
Durable Construction: Designed for excellent performance in various indoor listening environments. Polypropylene plastics and large cable gauges ensure better signal transfer for long-lasting listening enjoyment.
Included Accessories: Comes with a paint mask, pre-mount bracket, and cut-out template for added convenience.
Warranty: Blucube speakers include a 5-year warranty.
Specifications
Frequency Response: 40Hz-22KHz
Sensitivity: 89dB at 1W/1 M
Recommended Amplifier Power: 10-1 50 watts
Impedance
- 4ohm
- 8ohm
(selectable on PCB)
Cut out size: 241 mm (9.5″)
Depth: 120mm (4.72″)
