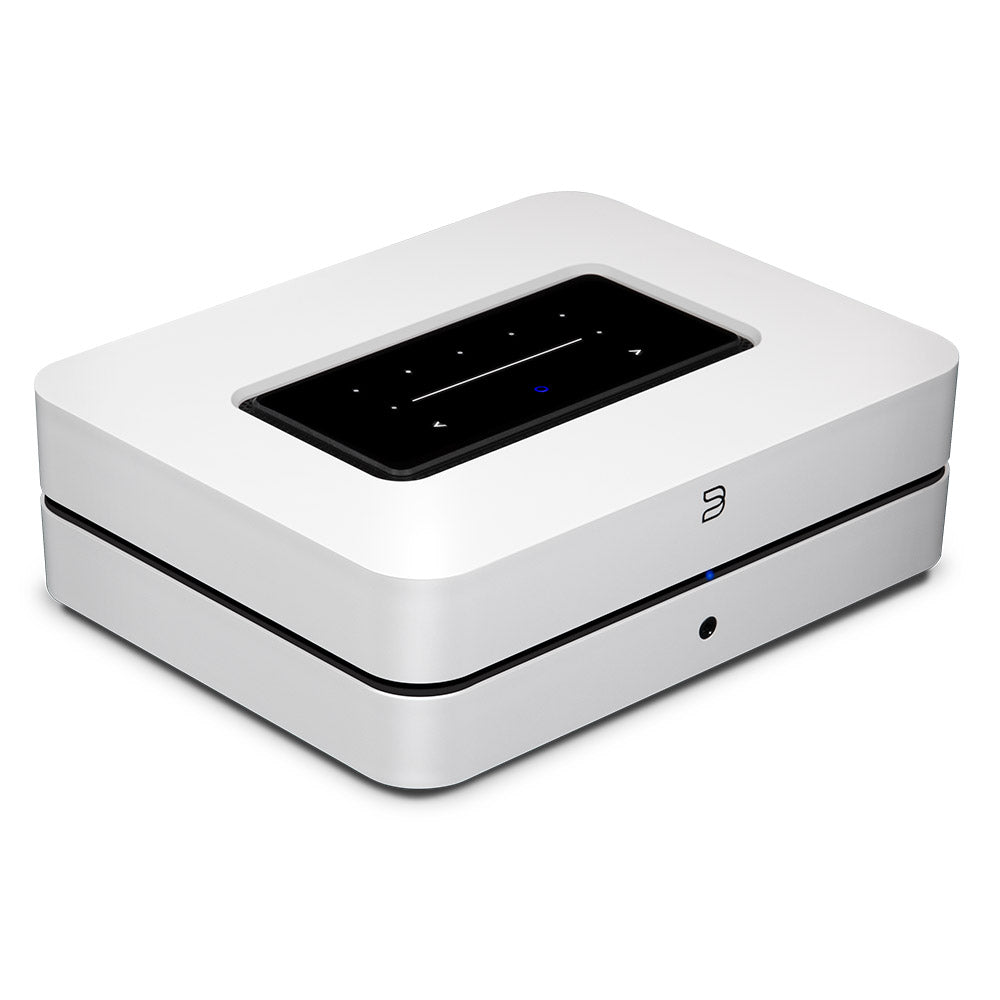

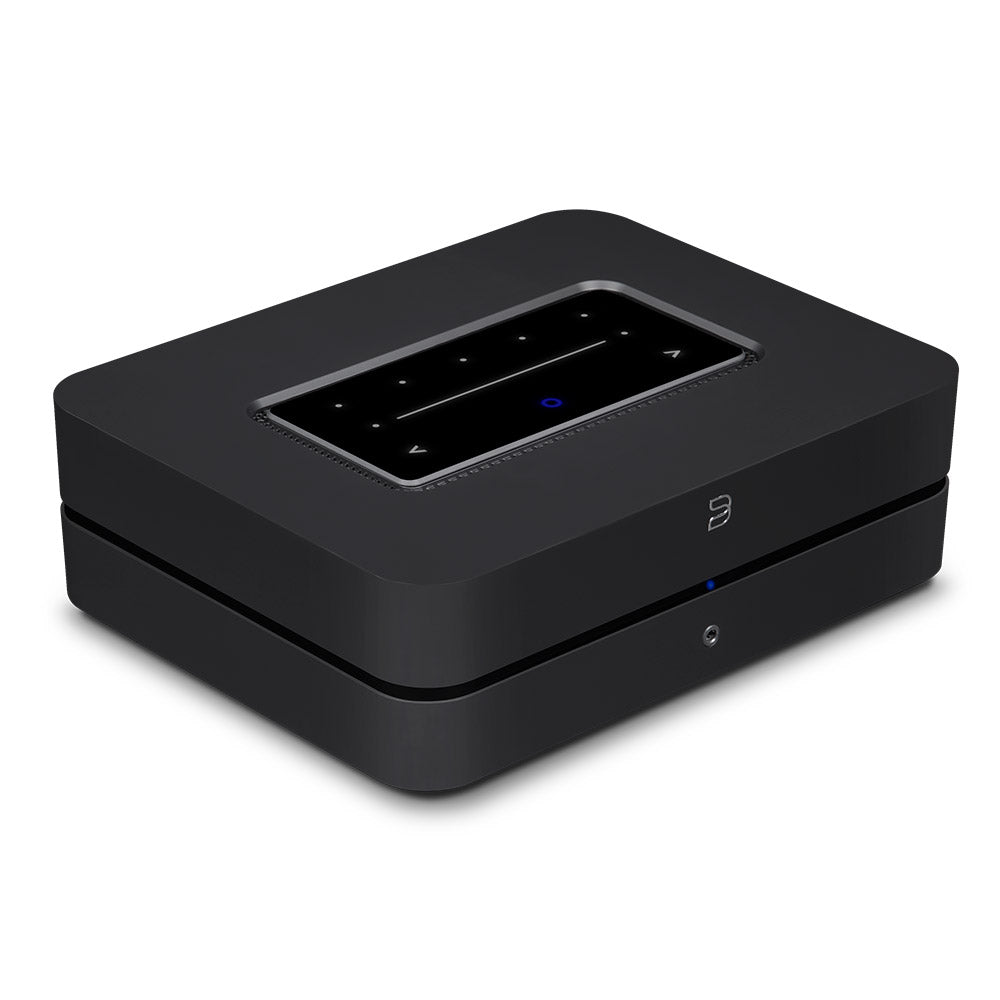

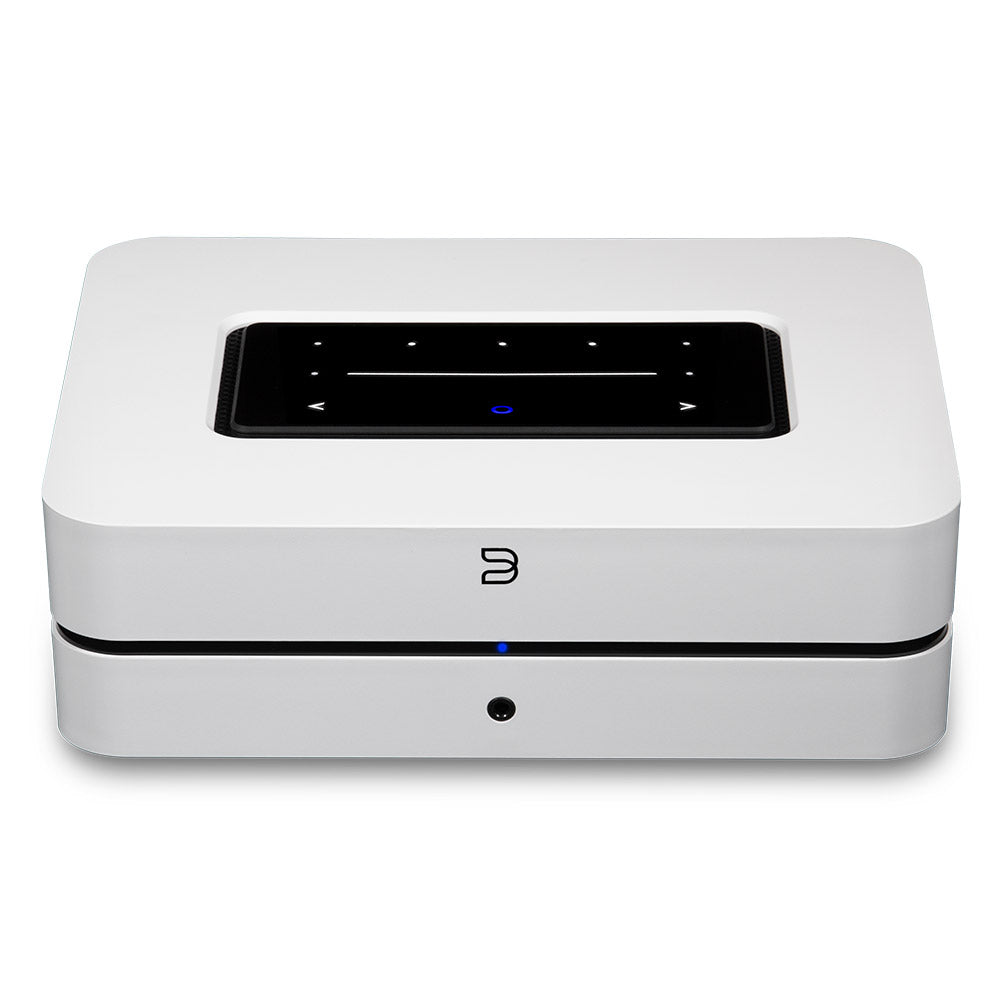

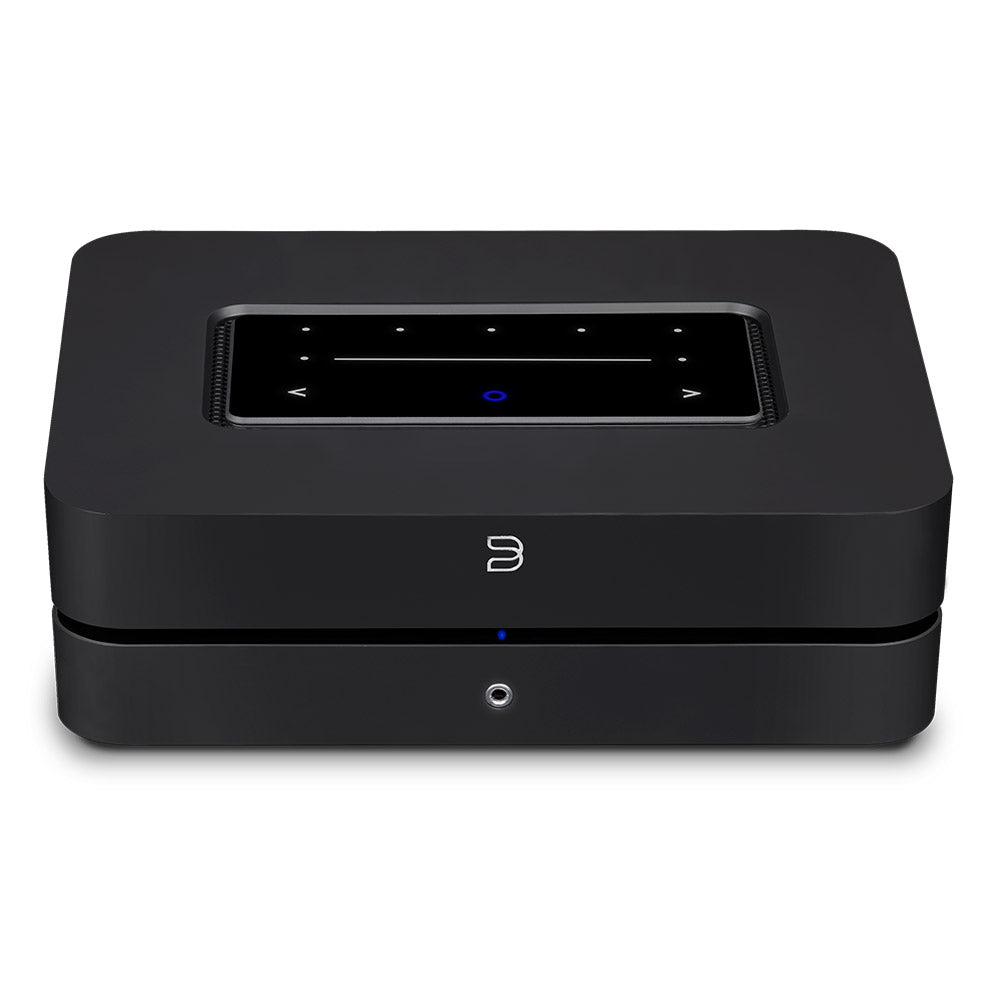

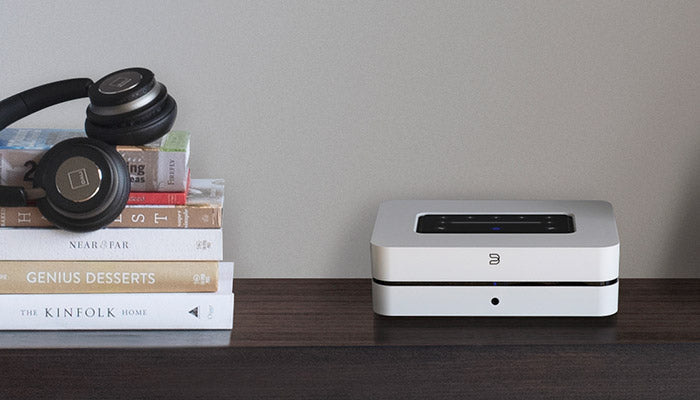

POWERNODE
Wireless Multi-Room Music Streaming Amplifier
The Bluesound POWERNODE is the hifi amp reinvented for the streaming age, combining audiophile-grade componentry and multi-room music capabilities to create an intuitive "just add speakers" hi-res sound system for modern music lovers.
General
- Finish: Black/White; Matte Satin Paint
- Power Consumption: 12 Watts
- Storage Environment: -10°C to 50°C, 20% - 80% relative humidity
- Operating Environment: '0°C to 40°C
- Weight: 1.78kg/3.9lbs
- Dimensions: 220 x 70 x 190 mm | 8.7 x 2.75 x 7.5 in
- Shipping Weight: 3.15kg/6.94lbs
- Shipping Dimensions: 300 x 300 x 110 mm | 11.8 x 11.8 x 4.33 in
Audio
- Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
- Supported Hi-Res Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
- Supported Multi-Channel Audio Formats: Dolby Digital
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Native Sampling Rates: up to 192 kHz
- Supported Network File Sharing: Server Messsage Block (SMB) up to 200,000 files
- Native Sampling Rates: up to 192 kHz
- Bit Depths: 16 - 24
- Performance: SNR -100dBA | THD+N, 0.008%
- DAC: 32-Bit, 384kHz Differential Output design
- Amplification: HybridDigital™
- Rated Power Output: 80W x 2 (8 Ohms)
- IHF Dynamic Power: 220W (4 Ohms) / 130W (8 Ohms)

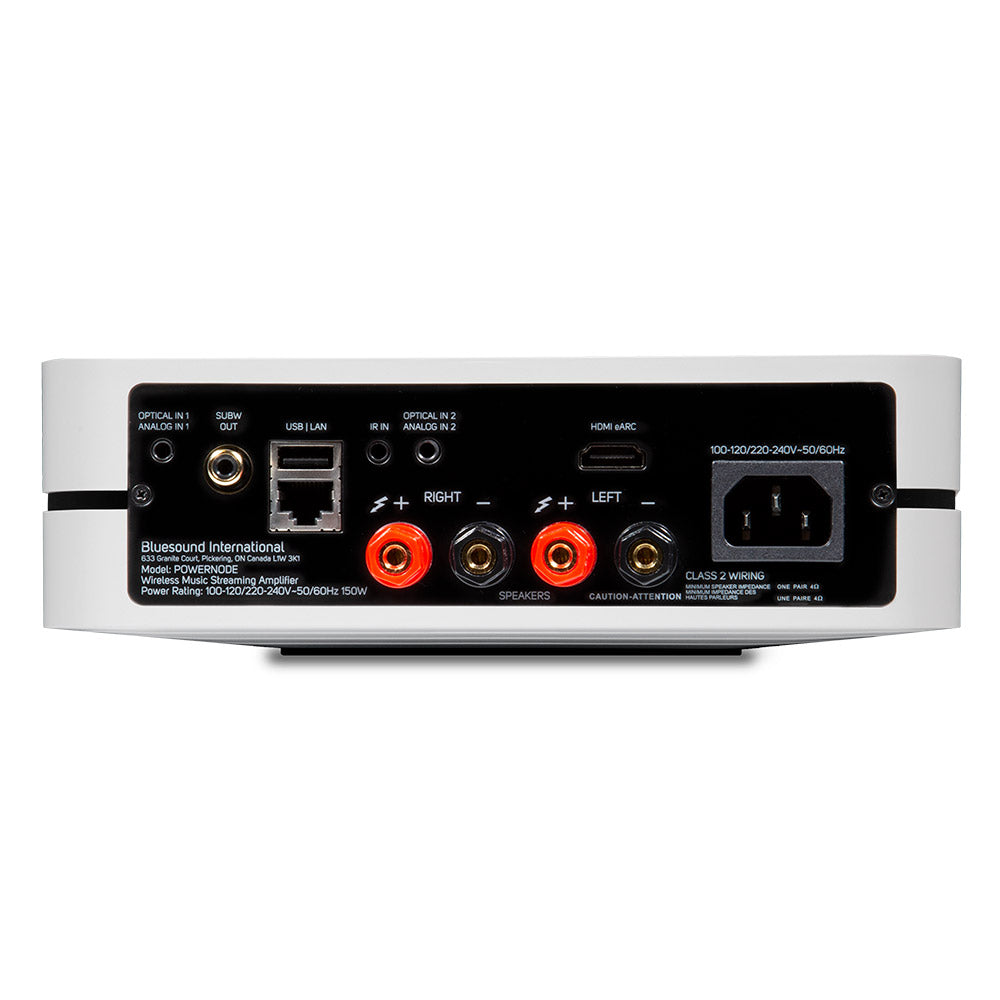

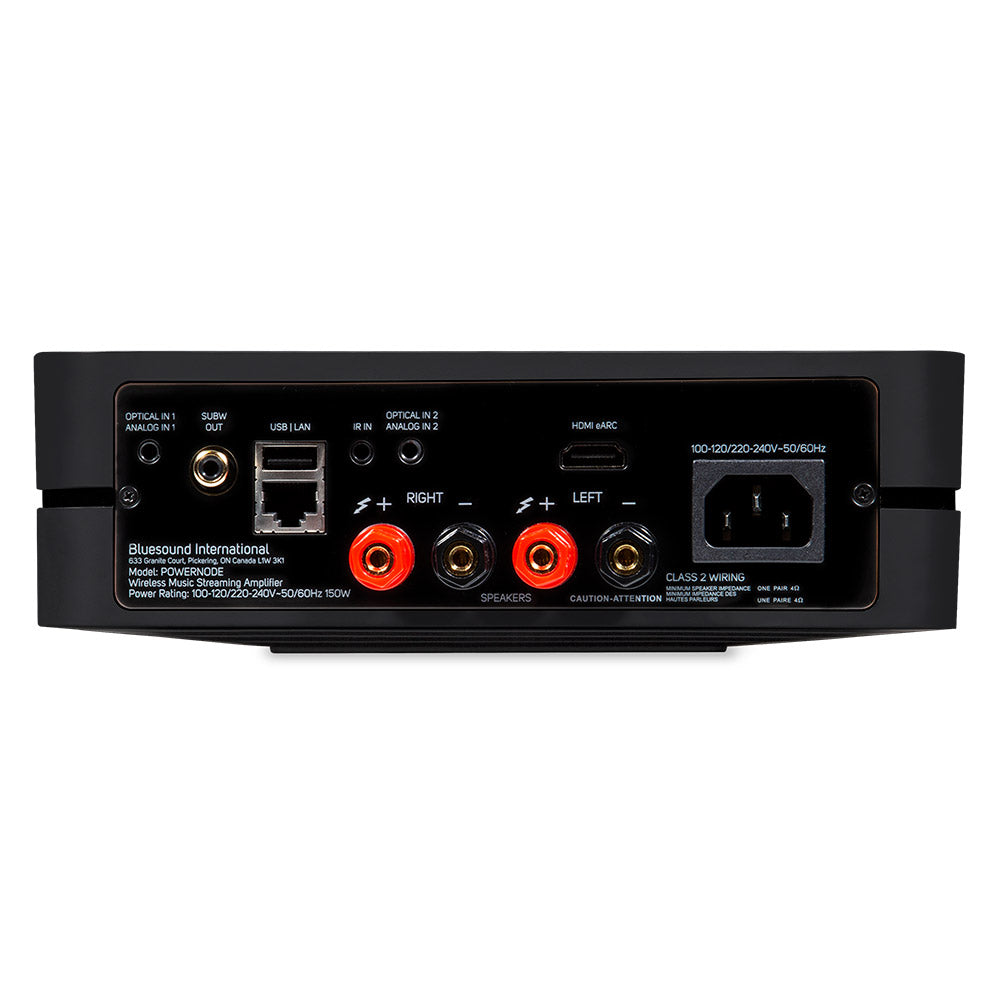

Connections
- Network: Wi-Fi 5 (802.11ac, 2.4/5GHz) | Ethernet RJ45 | GigE 1000 Mbps
- Audio Input: Mini TOSLINK/3.5mm | Stereo combo x 2 | HDMI eARC
- Audio Output: 5-Way Binding Post Speaker Terminals
- Bluetooth: Bluetooth with support for aptX HD | Two-Way (transmit & receive)
- Headphones: 3.5mm Stereo Out | Wireless Bluetooth Out
- Subwoofer: RCA | Network Pairing to PULSE SUB+
- USB: Type-A Port for external drive connection (Fat32 or NTFS formatted)
- IR Remote: IR Sensor Built In - front panel with IR Remote Learning | Universal 3-pin AC cord input (100-240AC)
Software & Integrations
- App Controller Operating Systems: iOS, Android, Windows Vista, 7, 8, 10, macOS 10-11
- Network File Sharing: SMB up to 200,000 track index
- Album Art Supported: JPG, PNG
- Internet Radio: Click here
- Music Services: Click here
- Voice Control: Amazon Alexa Skills
- 3rd-Party: AirPlay 2 | Spotify Connect | Tidal Connect | Roon Ready
- Control Systems: Control4, Crestron, URC, RTI, ELAN, Lutron

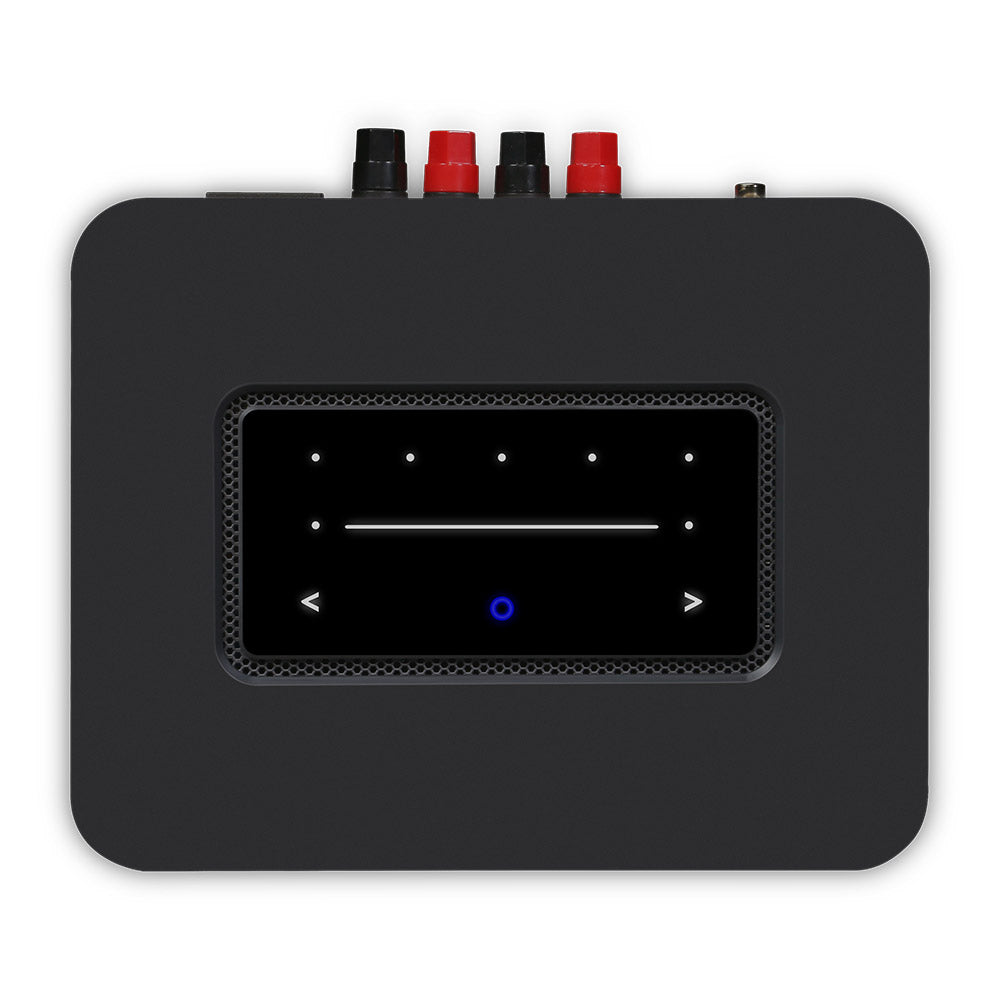

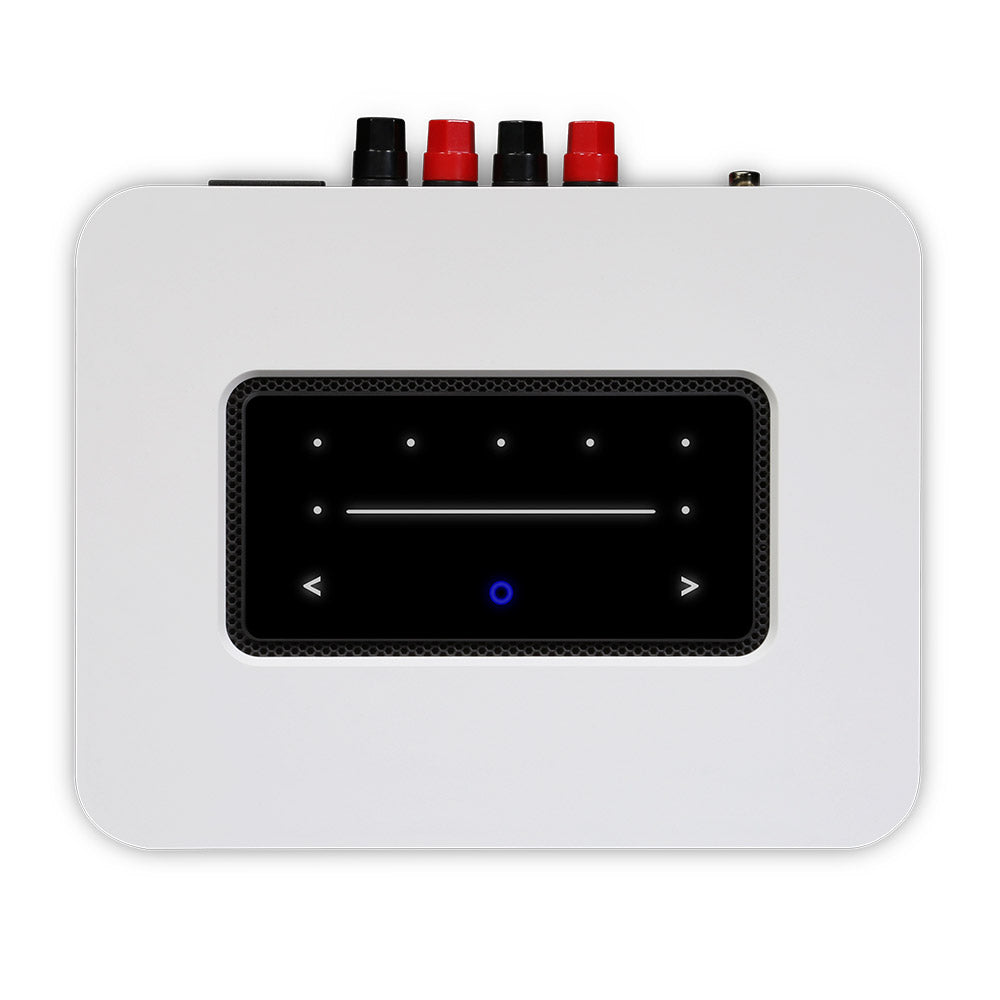

User Interface
Status Indicator: RGB LED x 2
Play/Pause Button: Touch LED
Volume Control Buttons: Touch Slider LED
Previous/Next Track Buttons: Touch LED
Preset Buttons: Touch LED x 5
Proximity Sensor: Yes
