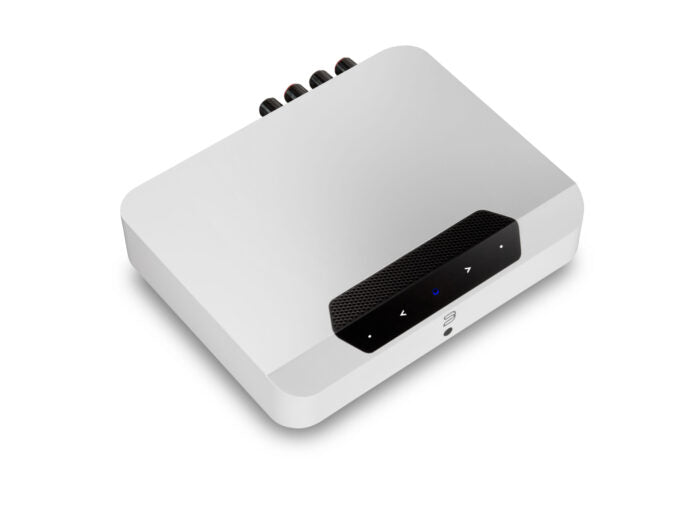

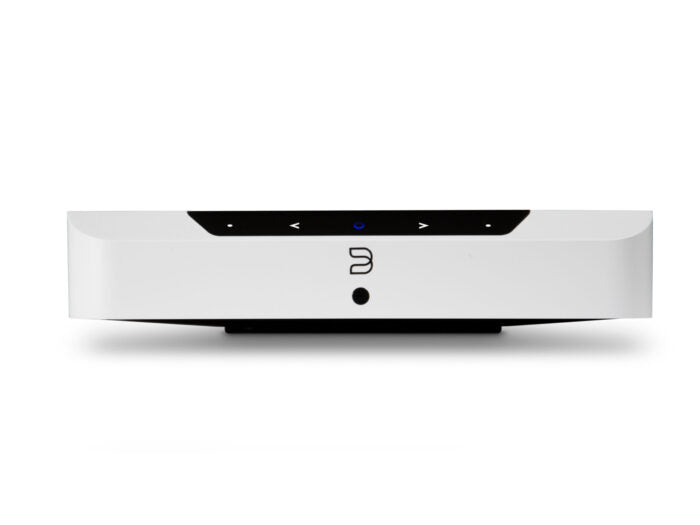

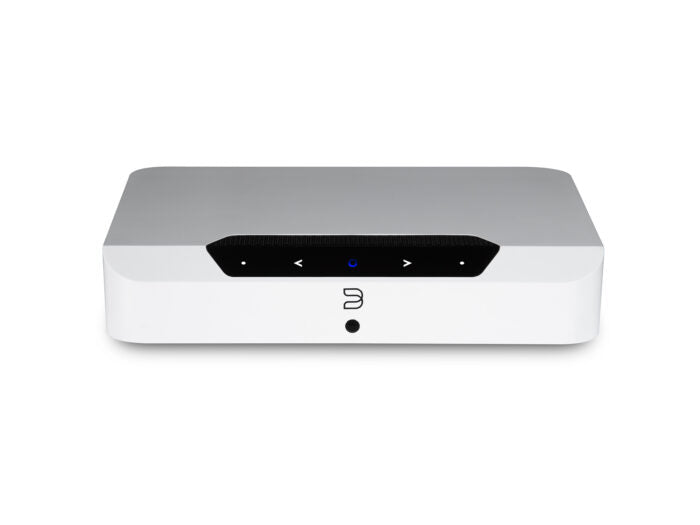

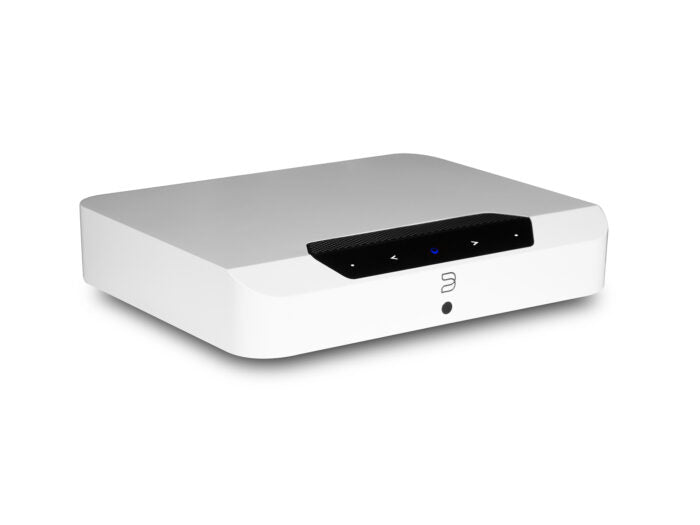

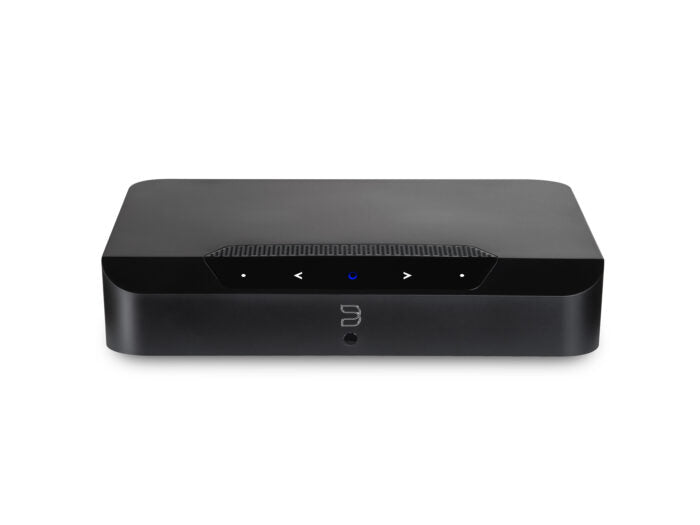

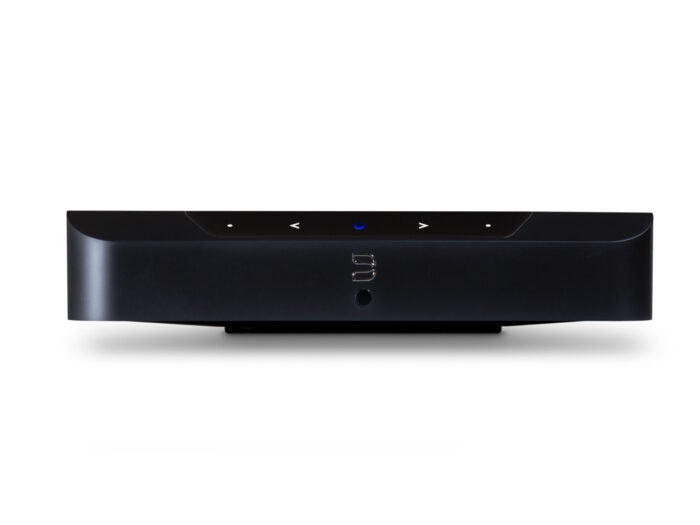

MEET THE POWERNODE EDGE

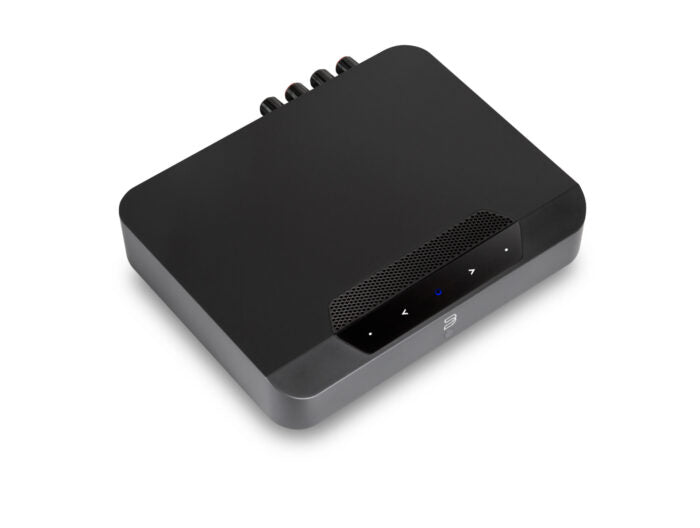

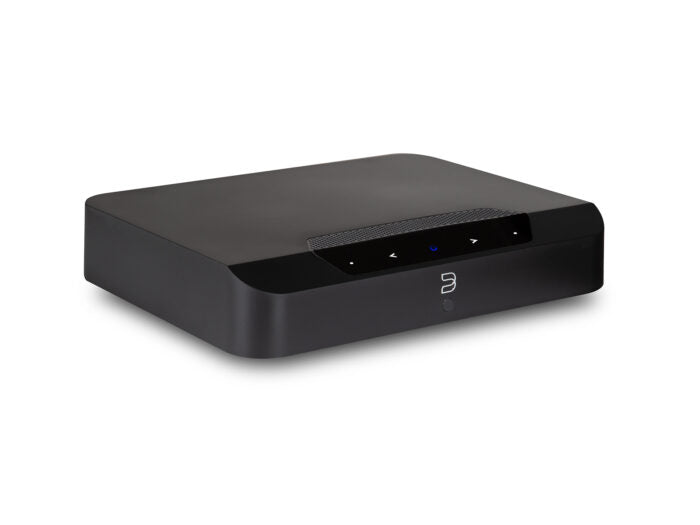

POWERNODE EDGE
Compact Wireless Music Streaming Amplifier
The POWERNODE EDGE is the perfect segue into “just add speakers” HiFi for the streaming age, combining streaming sources, control and amplification in a sleek and affordable device.
General
- Finish: Black/White; Matte Satin Paint

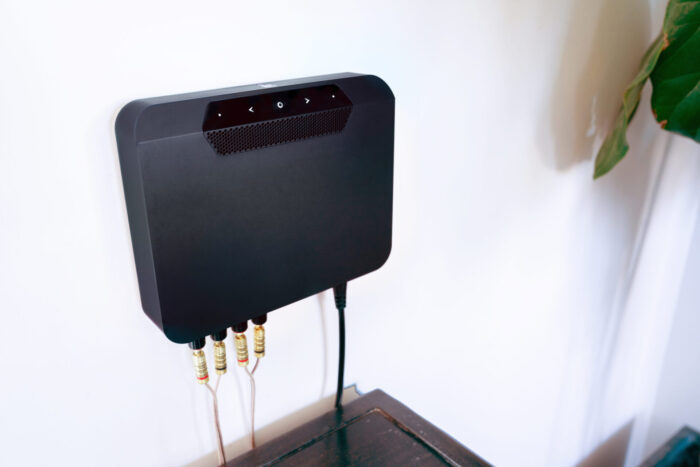

- Included Accessories: 120V AC Power Cord | 230V AC Power Cord | Ethernet Cable | TOSLINK Optical to 3.5mm Mini Adapter | Metal Mounting Bracket | Metal Mounting Screw | Rubber Mount Attachment | Safety/Warranty Guide| Quick Setup Guide
- Max Power Consumption: 210W
- Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
- Operating Environment: '0°C to 40°C
- Product Weight: 1.37kg/3.02lbs
- Product Dimensions: 219 x 44.5 x 193 mm | 8.6 x 1.75 x 7.6 in
- Shipping Weight: 2.62kg/5.78lbs
- Shipping Dimensions: 300 x 300 x 95 mm | 11.8 x 11.8 x 3.74 in
Audio
- Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
- Supported Hi-Res Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
- Supported Multi-Channel Audio Formats: Dolby® Digital
- Native Sampling Rates: up to 192 kHz
- Bit Depth: 16-24
- Audio Controls & EQ: BluOS Controller App
- Signal-to-Noise Ratio: -91dBA
- Distortion: THD+N, 0.008%
- Amplification: DirectDigital™
- Rated Power Output: 40W x 2 (8 Ohms)
- IHF Dynamic Power: 80W (4 Ohms) / 50W (8 Ohms)
- Minimum Impedance: 4 Ohms
Software & Integrations
- Operating System: BluOS
- App Controller Operating Systems: iOS, Android, Windows, macOS
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
- Album Art Supported: JPG, PNG
- Music Services & Internet Radio: 23+ Click here
- Voice Control Integrations: Amazon Alexa Skills
- 3rd-Party Integrations: AirPlay 2 | Spotify Connect | Tidal Connect | Roon Ready
- Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
- BluOS Home Theater: Yes - rear surround channels

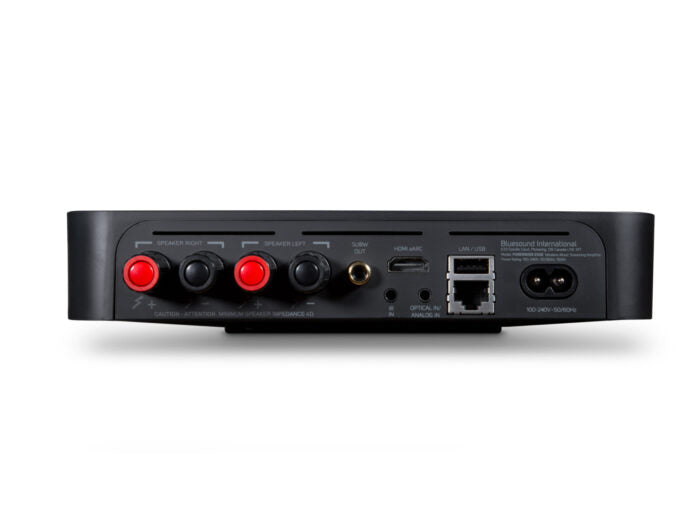

Connections
- Universal bi-pin AC cord input (100-240AC)
- Ethernet: RJ45 | Gigabit: 1000 Mbps
- Wi-Fi 5 (802.11ac), dual-band
- Bluetooth 5.0 aptX HD
- Two-Way (transmit & receive) Bluetooth conectiviy
- IR Sensor Built In - front panel with IR Remote Learning
- 3.5mm Jack IR input
- Optical/Analog Input: Combo - Mini | TOSLINK/Stereo 3.5mm
- HDMI eARC input
- Type A USB (Fat32 Formatted)
- Bluetooth Headphone Output
- RCA x 1; Wireless to PULSE SUB+ subwoofer output
- 5-Way Binding Pos speaker terminals
User Interface & Control
Status Indicator: LED
Play/Pause Button: Touch LED
Volume Control Buttons: Touch LED
Previous/Next Track Buttons: Touch LED
Preset Buttons: In-App
