A VERSATILE NETWORK ACCESSORY
Complete your system with the HUB, a versatile network accessory that connects to a wide variety of audio sources, allowing them to play back on any Bluesound player.
Features
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Status Indicator: Front Panel LED
- Function Button: Front Panel Function Button
- Power Consumption: 0.5W Network Standby
AUDIO & OPERATING SYSTEM
- Operating System: BluOS
- Controller OS: iOS, Android, Windows, MacOS
- Control Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
- Simultaneous Streams: 2 per HUB
- Audio Inputs: 1 analog, 1 digital
- Max Units: 4x HUB on a single network (8 simultaneous streams)
- Sampling Rates: Up to 192 kHz
- Bit Depth: 16-24
- SNR: >100 dB (Line input), >80 dB (Phono MM input)
- Distortion: <0.03% (20-20 kHz at -1dBFS output)
- Frequency Response: 20-20 kHz +/-0.3dB; 50 kHz -3dB

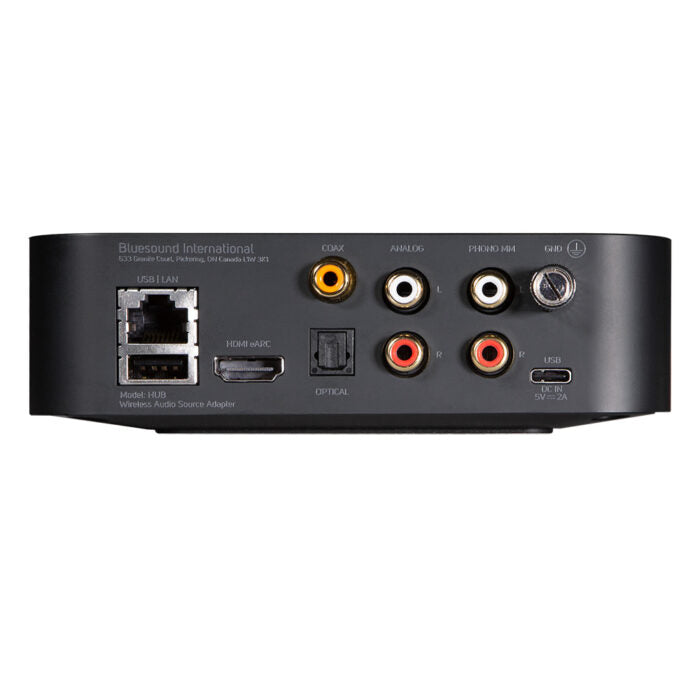

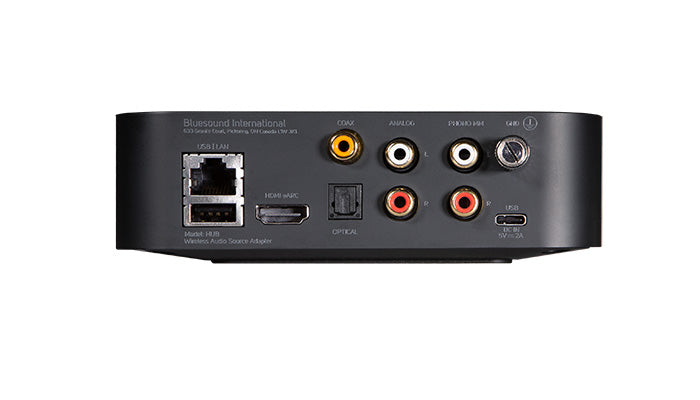

Connections
- Power Supply: Universal USB-C Power adapter
(Input:100-240V AC/0.3A Output:5V/2A) - Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
- Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
- Analog Line Input: 1 x Stereo RCA
- Phono Input: 1 x Stereo RCA (Moving Magnet)
- Optical Input: 1 x TOSLINK digital optical
- Coaxial Input: 1 x RCA (75 ohms)
- HDMI Input: HDMI eARC with CEC
- USB Input: Type A (for BluOS firmware upgrade only)
- Audio Output: Network
General
Finish
Black; Matte Satin Paint
Version
CB130
Product Dimensions
143 x 153 x 45mm (W x D x H)
5.6 x 6 x 1.8 in (W x D x H)*
* Non-metric measurements are approximate.
Weight
0.63kg / 1.39 lbs
Included Accessories
5V Power Adapter
3 x International Plug Adapters
USB-C Power Cable
Ethernet Cable
Mounting Template
Safety/Warranty Guide
Quick Setup Guide
