Smaller than you can imagine

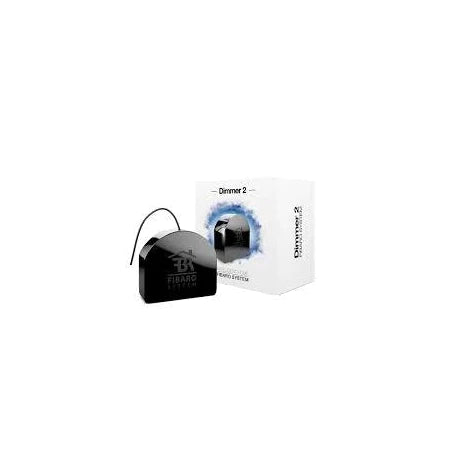

Intently designed small Dimmer switch lighting controller can be placed in most standard electrical boxes and switches.
Features
- Compatible with any Z-Wave or Z-Wave+ Controller
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Auto-adjustment of the appropriate control mode to connected load
- Active power and energy metering functionality
- Soft start function
- Memory of the last lighting level settings
- Works with various types of switches – momentary, toggle, three-way, etc.
- Active element: semiconductor electronic switch
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
- FGD-212 is an extension unit
Technical Data
- Power supply: 100-240 V~ 50/60 Hz
- Power consumption: < 1.3W
- Operational temperature: 0-35°C
- Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm
- For installation in boxes: Ø ≥ 50mm
- Operational current: 0.25-1.1A
- Device temperature protection: 105°C
- Active element: semiconductor electronic switch ε
- Device control: remotely – radio wavesdirectly – external switch
- Radio protocol: Z-Wave
- Radio signal power: up to 1mW
- Radio frequency: 868.4, 869.85 MHz EU;908.4, 916.0 MHz US;921.4, 919.8 MHz ANZ;869.0 MHz RU; 919.8 MHz HK;868.1 MHz MY; 865.2 MHz IN;915.0 Mhz – 917.0 Mhz IL;922.0 MHz – 926.0 MHz JP;868.4 MHz CN, KR;
- Radio transmit power: up to 6 dBm (EIRP)
- Range: up to 50 m outdoorsup to 30 m indoors(depending on building materials)
- Comply with EU directives: RED 2014/53/EURoHS 2011/65/EU
Frequently Asked Questions
What is a Dimmer 2 module?
FIBARO Dimmer 2 is a device designed to control various types of light sources in 2 or 3-wire connection. It can switch or dim connected light source remotely using Z-Wave wireless protocol or through the wall switch connected directly to it.
How big load can be connected to the Dimmer 2?
It depends on the type of load:
– resistive loads (conventional incandescent and halogen light sources) – max. 250W
– resistive-capacitive loads (fluorescent tube lamp, electronic transformer, LED) – max. 200VA
– resistive-inductive loads (ferromagnetic transformers) – max. 220VA
What is association functionality?
Association allows you to control two or more Z-Wave devices from one module. Association works always only from buttons (S1 and S2).
How can I use the S1 and the S2 connectors?
Switch connected to the S1 terminal is a master switch. It activates the basic functionality of the Dimmer 2 (turning the light on/off, dimming) and starts the learning mode (Add/Remove). The switch connected to the S2 terminal is an optional switch and pushing it without changing the configuration parameters will not affect the status of the device. Functionality of the switches can be reversed by adjusting parameter 22.
Is it possible to control two separated outputs from one Dimmer 2?
No – the Dimmer 2 has only one physical output (controlled from S1). To control two circuits you will need to connect another Dimmer. However there is possibility to control two or more Dimmers or Relay Switches from one module using association.
