Fibaro

Double Switch 2

Double Switch 2

FGS-223-ZW5
Regular price £54.37
Regular price Sale price £54.37
Sale Sold out
Tax included.
Switch 2 is designed to be installed in standard wall switch boxes or
anywhere else where it is necessary to control electric devices. Switch 2
allows to control connected devices either via the Z-Wave+ network or via a switch connected directly to it and is equipped with active power and energy consumption metering functionality. FOR CONTROL OF TWO ELECTRIC DEVICES.

The Fibaro Double Switch 2 is a model of a smart switch product made by Fibaro, a manufacturer of smart home technology. It is a double switch that can be used to control two separate electrical devices or circuits, such as lights or fans, from a single switch. The Double Switch 2 is a Z-Wave compatible device, meaning it can be integrated with other Z-Wave devices and controlled through a Z-Wave network. This allows for automation and remote control of connected devices through a compatible Z-Wave hub or smart home system. The Double Switch 2 is designed for easy installation and can be used as a retrofit solution to upgrade traditional switch circuits to smart switches. With its compact size and versatility, the Fibaro Double Switch 2 is a good choice for adding smart control to your home lighting and electrical devices.
View full details

Features

  • Compatible with any Z-Wave or Z-Wave+ Controller
  • Supports protected mode (Z-Wave network security mode) with AES-128 encryption
  • Advanced microprocessor control
  • Active power and energy metering functionality
  • Works with various types of switches – momentary, toggle
  • three-way, etc
  • To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
  • FIBARO Switch 2 is an extension unit

Technical Data

  • Power supply:100-240V~ 50/60 Hz
  • Rated load current: Single Switch 2 (FGS-213):IEC standards: 8AUL standards (resistive load): 6.5AUL standards (incandescent load): 5A | Double Switch 2 (FGS-223): IEC standards: 6.5A per channel, 10A overall UL standards (resistive loads): 6A per channel, 9.5A overall UL standards (incandescent loads): 3A per channel
  • Operating temperature: 0-35°C
  • For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm
  • Radio protocol: Z-Wave (500 series chip)
  • Radio signal power: up to 1mWRadio frequency:868.4 or 869.8 MHz EU;908.4, 908.42 or 916.0 MHz US;921.4 or 919.8 MHz ANZ;869.0 MHz RU;
  • Radio transmits power: up to 6 dBm (EIRP)
  • Range: up to 50m outdoors up to 40m indoors (depending on terrain and building structure)
  • Comply with EU directives: RED 2014/53/EURoHS 2011/65/EU
  • Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm

Frequently Asked Questions

What is a Single/Double Switch 2 module?

FIBARO Single/Double Switch 2 is a wireless module designed to operate in a wall switch box or in locations where the control of an electric device is needed.

What voltage Single/Double Switch 2 module should be powered by?

The Single/Double Switch 2 should be connected to 110-240V AC (50/60Hz).

What are the differences between Single and Double Switch?

FIBARO Switch 2 comes in two versions:

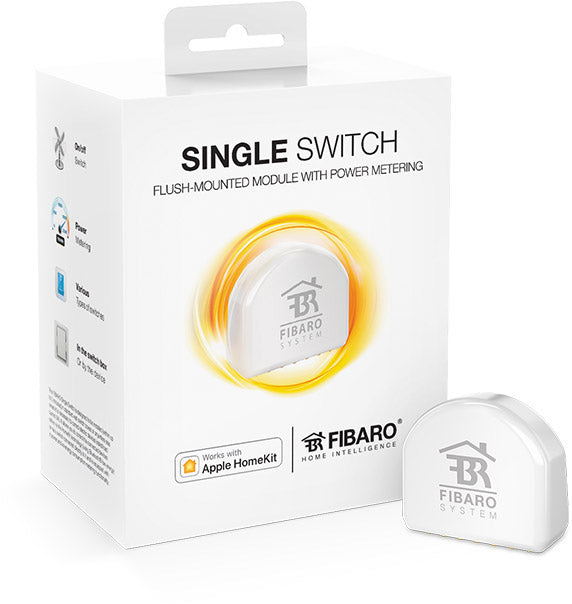

  • Single Switch 2 (FGS-213) – can control one electric device
  • Double Switch 2 (FGS-223) – can control two electric devices

What voltage can be controlled by modules output?

FIBARO Single/Double Switch cannot control the output directly. The module simply closes the electrical circuit (or two circuits if it’s a Double Switch) so devices connected to this electrical network turns on (or off on relay interruption).

Can this module be DC supplied?

No, only the previous generation of the device was able to do so. However, you can check other FIBARO devices if they are suitable for your needs.
