Fibaro

FIBARO RGB Controller 2

FIBARO RGB Controller 2

FGRGBWM-442
£54.37
£54.37
Sale Sold out
Tax included.

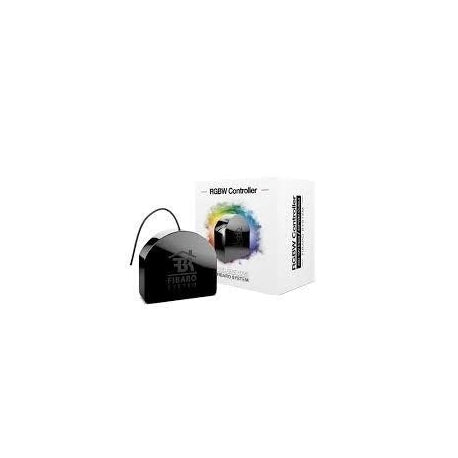

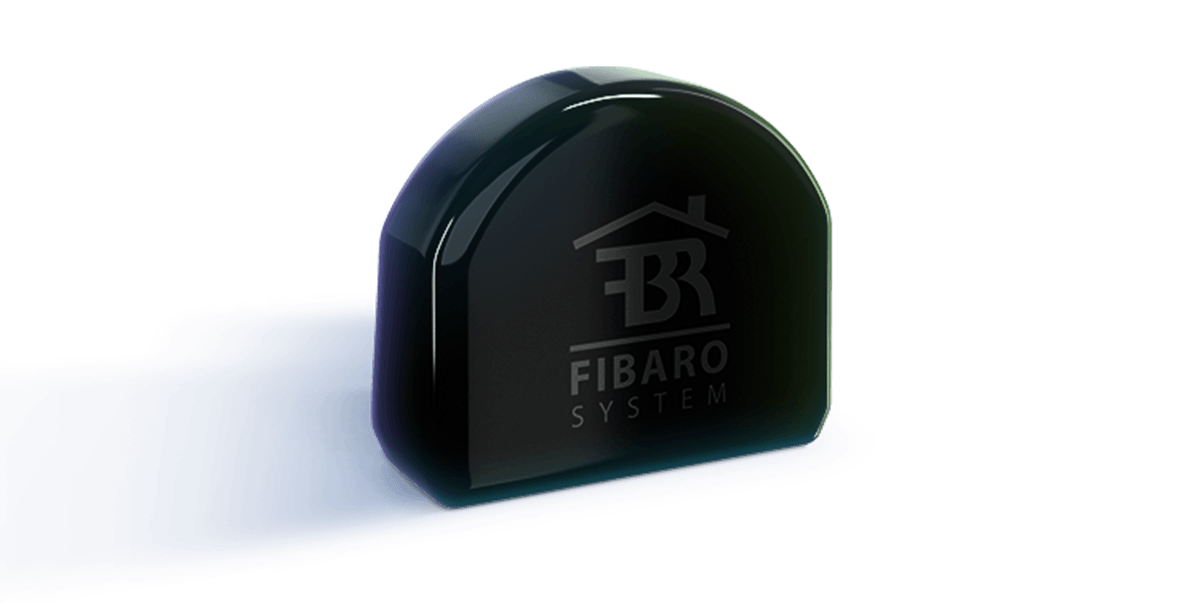

RGBW Controller 2 is a universal, Z-Wave compatible RGB/RGBW controller. FIBARO RGBW Controller uses PWM output signal, which enables it to control LED, RGB, RGBW strips, halogen lights and fans. Controlled devices may be powered by 12 or 24 VDC. In addition, the device supports up to four, 0V – 10V analog sensors, such as temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors etc. All IN and OUT terminals may be user configured for LED control or 0V-10V signal readouts.
View full details

The magic of colour

Deep inside his heart, everyone dreams about becoming a wizard. Thanks to RGBW, the dream may start to come true. Your wish is enough for colours around you to start changing.

Features

  • Compatible with any Z-Wave Controller
  • Advanced microprocessor control
  • Different operating modes
  • Active power and energy metering functionality
  • Multiple colour presets
  • Active element: transistor
  • To be installed in standard wall switch boxes

Technical Data

  • Power supply: 12/24V DC
  • Rated output power: combined 12A (sum of all connected output channels) 6A for single output channel
  • PWM output frequency: 244Hz
  • Electricity consumption: 0.3W
  • Radio signal power: 1mW
  • For installation in boxes: Ø≥50 mm
  • Max load: at 12V – 144W combined at 24V – 288W combined
  • EU directive compliance: RoHS 2011/65/EU EMC 2004/108/ECR&TTE 1999/5/EC
  • Radio protocol: Z-Wave
  • Radio frequency: 868.4 MHz EU908.4 MHz US921.4 MHz ANZ869.0 MHz RU
  • Radio transmit power: up to -1 dBm (EIRP)
  • Range: up to 50m outdoors / up to 30m indoors (depending on terrain and building structure)
  • Operational temperature: 0 – 40°C
  • Dimensions (L x W x H): 42 x 37 x 17 mm

Frequently Asked Questions

Is it fitted with a DC power supply?

No, you need to use an external transformer.

 Can I stream the camera image to other devices?

Yes, for example surveillance stations. You need to use:

  • IP address of Intercom,
  • Port 8080,
  • MJPEG stream url “/live/mjpeg”,
  • Your local access login credentials.

Can I control the four RGBW channels, at the same time use the inputs to monitor sensors and without input readings have direct effect on the RGBW output channels?

No, it is not possible. When you configure module as RGBW it automatically configures inputs to control the outputs.

Can I connect the Dallas DS18B20 Temperature Sensor additionally if I use RGB LED strip connected to my RGBW?

No, this is a 1-wire digital sensor, compatible only with Universal Binary Sensor and Door/Window Sensor.

 Is it possible to use a RGBW switch in the Sprinkler Panel in order to switch 4 valves?

It is possible, but you can’t use RGBW devices in the sprinklers panel so you’d have to write some custom scenes to make this work. You must input 24V and change “Controlled device” for “Output / Input”. After this you can control 4 devices (sprinklers).

Can I connect different light sources to each of channels?

Yes, every RGBW channel is separated, so you can connect any light source to each of them. The only requirement is they operate on the same voltage, for example 12V.
