HELTUN

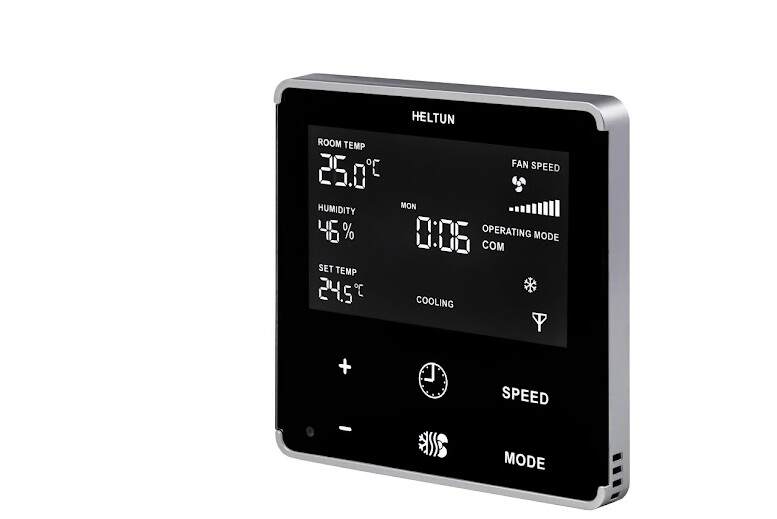

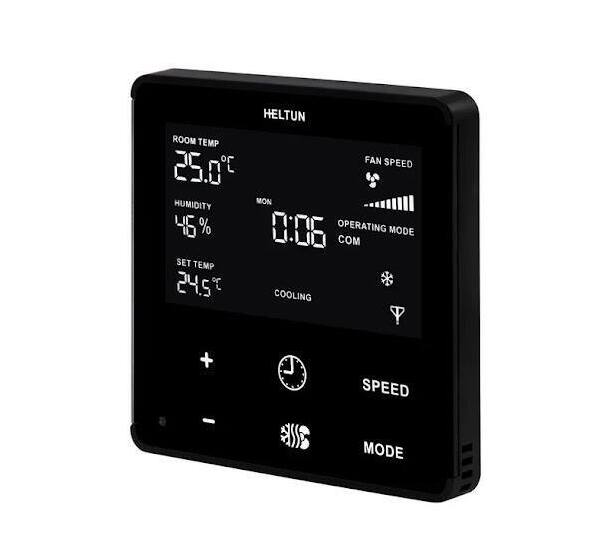

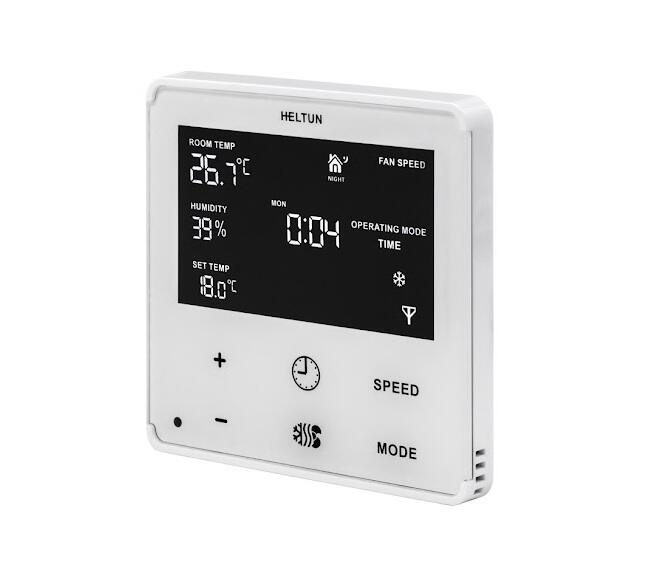

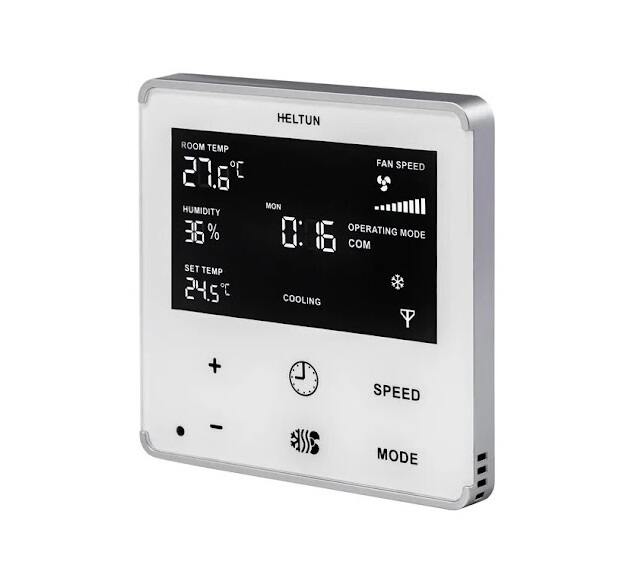

HELTUN Fan Coil Thermostat

HELTUN Fan Coil Thermostat

HE-FT01-WW
Regular price £225.60
Regular price Sale price £225.60
Sale Sold out
Tax included.
Color

HELTUN Fan Coil Thermostat is a Z-Wave Plus v2 700-series enabled device for indoor temperature control, mainly applied to controlling fan coil 2-pipe or 4-pipe systems, as well as ceiling AC units and floor convectors.

The only fan coil thermostat certified by Z-Wave Alliance
May be used in mixed installations like cooling by fan coil & heating by electric heater
Don’t buy extra sensors: ambient light, humidity and room temperature are already included to create custom scenarios.
Smart cost management: Intelligent comfort modes that maintain a constant room temperature and allow for energy-saving scheduling.
Work with any Z-Wave hub: you’re free to integrate it into your existing system or create your own based on your personal requirements.

Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library


View full details

EASY INSTALLATION

The HELTUN thermostat can be easily installed into any standard wall socket (rectangular or round type).

Image in a Row

TECHNICAL SPECIFICATIONS

  • Front frame dimensions: 89x89x9mm
  • Back dimensions: 53x53x28mm
  • 3 frame colors: Silver, Black, White
  • 2 glass colors: White, Black (Yellow, Green, Red, Blue on request)
  • LCD: 72x42mm, black with white segments
  • 6 sensitive capacitive touch buttons
  • Power supply: 85VAC – 265VAC, 50Hz/60Hz or 24-48VDC
  • 5 relays with a resistive load of up to 5A each: 2 relays for cooling and heating valves, 3 relays for fan speed
  • 2 independent relay inputs, dry contact type
  • Relay life time: 100 000 switches
  • Z-Wave Frequency: All countries
  • Z-Wave SDK: V7.11.1
  • Z-Wave Plus module: ZGM130S

Features

Features

Security levels: Non-Secure, S0, S2, S2 authenticated
Smart Start inclusion
3 operation modes with individual temperature set point
4 time schedule for morning, day, evening, and night
4 climate modes: Heating & Cooling, Heating Only, Cooling Only, Ventilation Only
Software energy consumption meter logic
Embedded ambient light sensor
Embedded room temperature sensor
Embedded humidity sensor
Adjustable temperature hysteresis: 0.2°C - 10.0°C
Adjustable LCD brightness: Auto or Manual
Child lock
OTA firmware updates
Manual change of frequency
