HELTUN High Load Switch with Thermostat Functionality
HELTUN High Load Switch with Thermostat Functionality
Regular price
£110.40
Regular price
Sale price
£110.40
Unit price
per
Tax included.
Couldn't load pickup availability

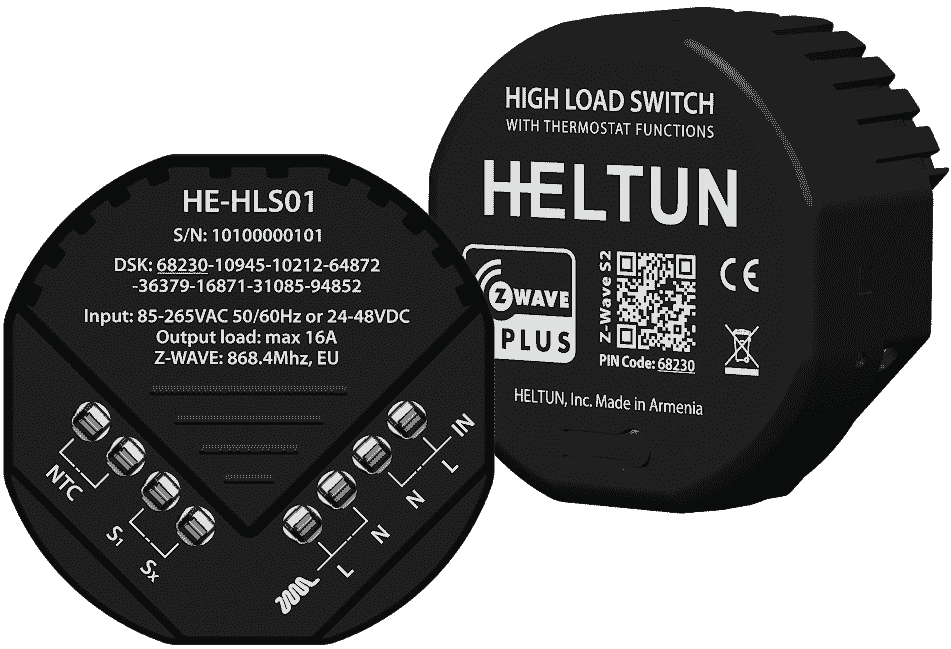

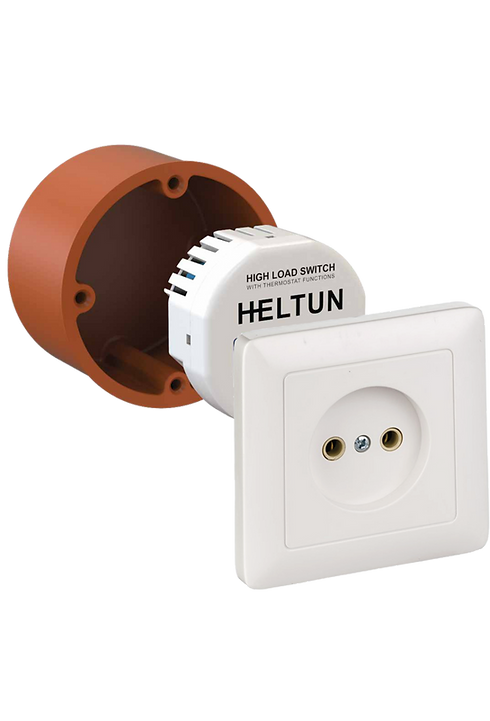

HELTUN HE-HLS01 High Load Switch with Thermostat Functions is a binary switch and a heating thermostat in a single device. It brings incredible capabilities to any connected device: either underfloor heating, boilers or radiators if it is used as a thermostat, or groups of lights and electric outlets if it is installed as a switch. The High Load Switch fits easily behind outlets or switches in standard electrical junction boxes—or in a circuit breaker panel—making them "Impossibly Smart'' with over-the-Internet monitoring, control, and advanced programmability.
Two-in-one: Heating Thermostat and Binary Switch in a single device
Highest load on the market: 16A per device
Zero cross functionality saves the lifetime of both the device itself and your heating system
Real time power consumption measurement: you can understand how much your heating system consumes both in real time and daily, weekly, and monthly
Protects your appliances from overheat, overcurrent, overvoltage, sparks/surges, voltage drops
Extra protection gives parents confidence about their children’s safety
Work with any Z-Wave hub: you’re free to integrate it into your existing system or create your own based on your personal requirements
Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library
Two-in-one: Heating Thermostat and Binary Switch in a single device
Highest load on the market: 16A per device
Zero cross functionality saves the lifetime of both the device itself and your heating system
Real time power consumption measurement: you can understand how much your heating system consumes both in real time and daily, weekly, and monthly
Protects your appliances from overheat, overcurrent, overvoltage, sparks/surges, voltage drops
Extra protection gives parents confidence about their children’s safety
Work with any Z-Wave hub: you’re free to integrate it into your existing system or create your own based on your personal requirements
Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library
TECHNICAL SPECIFICATIONS
- Dimensions: 50x50x26mm
- Mounting: flush electrical junction box or DIN rail via optional adapter
- Power supply: 85VAC – 265VAC, 50Hz/60Hz or 24-48VDC
- Maximum resistive load: 16A, 4000W @ 250V
- Relay life time: 100 000 switches
- Z-Wave Frequency: All countries
- Z-Wave SDK: V7.11.1
- Z-Wave Plus module: ZGM130S
Features
Features
- Security Levels: Non-Secure, S0, S2, S2 authenticated.
- Smart Start: Enables easy device integration.
- Operational Modes: 6 modes with individual temperature set points.
- Time Schedules: Four periods - morning, day, evening, and night.
- Safety Features: Includes overload, overheat, and high load timeout with notifications and auto-shutoff.
- Power Monitoring: Built-in hardware power consumption meter.
- Embedded Sensors: Ambient light, room temperature, and humidity sensors.
- NTC Sensor: Supplied with the device.
- Temperature Hysteresis: Adjustable from 0.2°C to 10.0°C.
- Updates: Supports OTA firmware updates.
- Frequency Adjustment: Manual option available.
