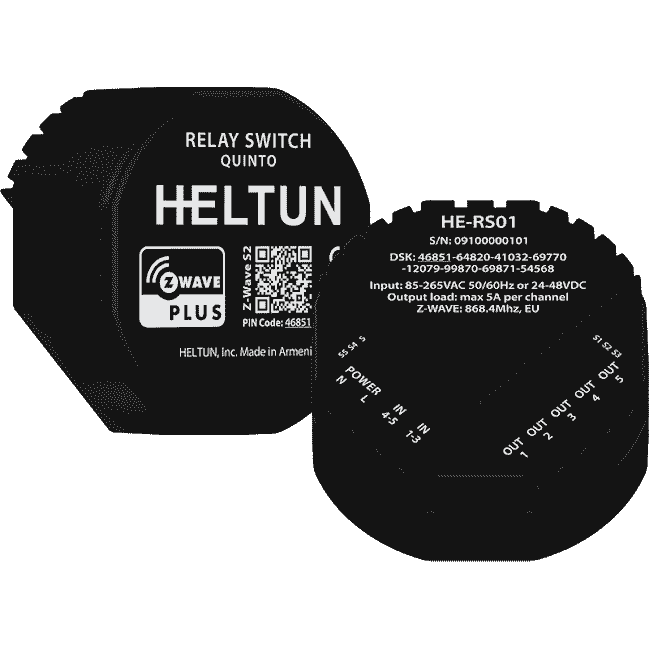

HELTUN Relay Switch Quinto (5x5A)
HELTUN Relay Switch Quinto (5x5A)
Regular price
£118.80
Regular price
Sale price
£118.80
Unit price
per
Tax included.
Couldn't load pickup availability
HELTUN Relay Switch Quinto is a Z-Wave Plus v2 700-series relay switch with 5 outputs mainly applied to control lighting groups, wall plugs, multi-gang light switches, locks, valves, and motorized devices like gates, doors, windows, and curtains.
Main power input: any from 24 VDC to 265 VAC
5 relay outputs with 5A load each
2 independent inputs may be used to control AC devices like lights and DC devices like motorized valves from a single Relay Switch
6 pilot wire inputs, 1 main and 5 for each channel: control relays from up to 5 different external sources (switches)
Zero cross functionality saves the lifetime of both the device itself and your heating system
Work with any Z-Wave hub: you’re free to integrate it into your existing system or create your own based on your personal requirements
Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library
Main power input: any from 24 VDC to 265 VAC
5 relay outputs with 5A load each
2 independent inputs may be used to control AC devices like lights and DC devices like motorized valves from a single Relay Switch
6 pilot wire inputs, 1 main and 5 for each channel: control relays from up to 5 different external sources (switches)
Zero cross functionality saves the lifetime of both the device itself and your heating system
Work with any Z-Wave hub: you’re free to integrate it into your existing system or create your own based on your personal requirements
Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library
EASY INSTALLATION
The HELTUN High Load Switch can be easily installed into any standard electrical junction box (rectangular, square, or round) in just minutes. Installation must only be performed by someone trained in handling high voltage electrical systems.
Features
- Supports Non-Secure, S0, S2, and S2 authenticated with key.
- Allows easy device integration.
- Each relay output can be managed individually.
- Five inputs can control any relay output.
- Seven modes for each relay, including Invert State, Momentary, Switch ON/OFF Only, and Timer.
- Software-based energy meter logic.
- Supports Over-The-Air (OTA) firmware updates.
- Manual frequency adjustment is possible.
TECHNICAL SPECIFICATIONS

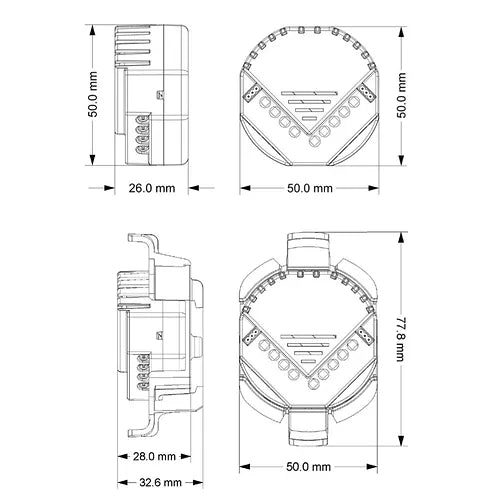

- Dimensions: 50x50x27mm
- Mounting: flush electrical junction box or DIN rail via optional adapter
- Power supply: 85VAC – 265VAC, 50Hz/60Hz or 24-48VDC
- 5 relays with resistive load up to 5A each
- 2 independent relay inputs, dry contact type
- One common (S) and five pilot wires (S1, S2, S3, S4, S5) for external control
- Relay life time: 100 000 switches
- Z-Wave Frequency: All countries
- Z-Wave SDK: V7.11.1
- Z-Wave Plus module: ZGM130S
