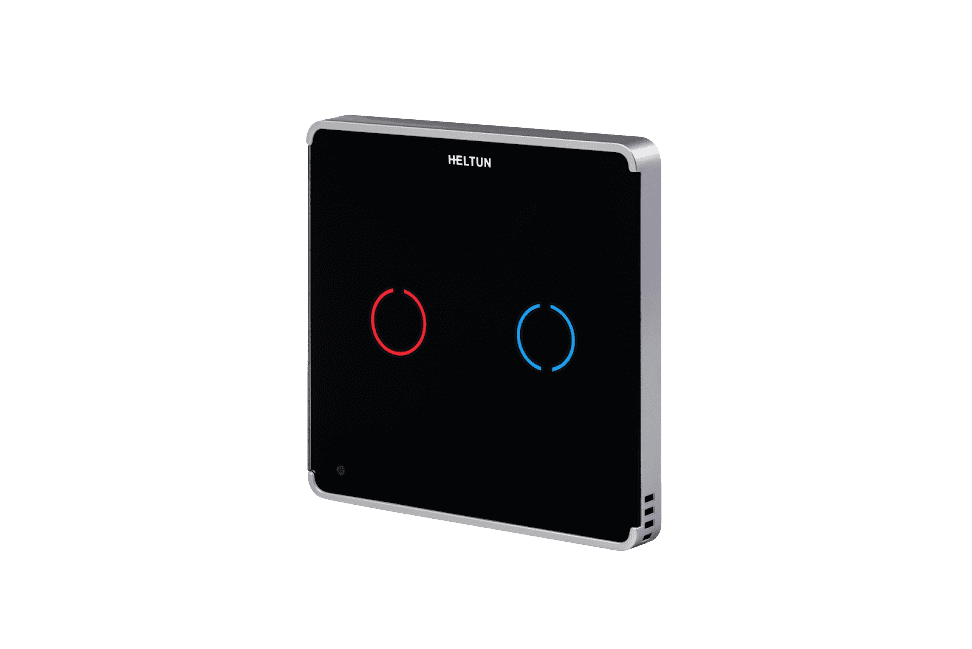

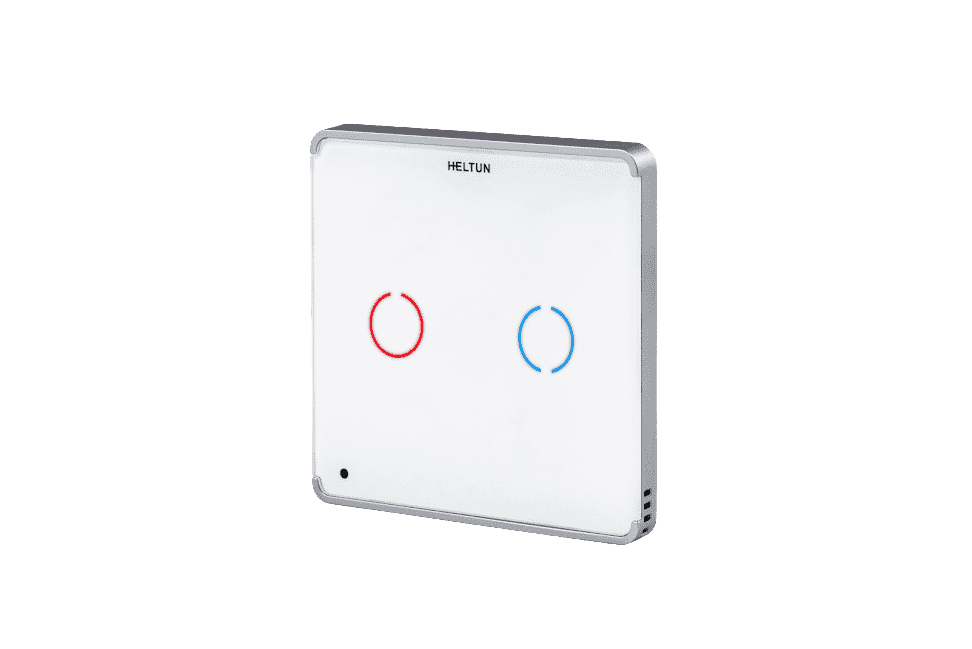

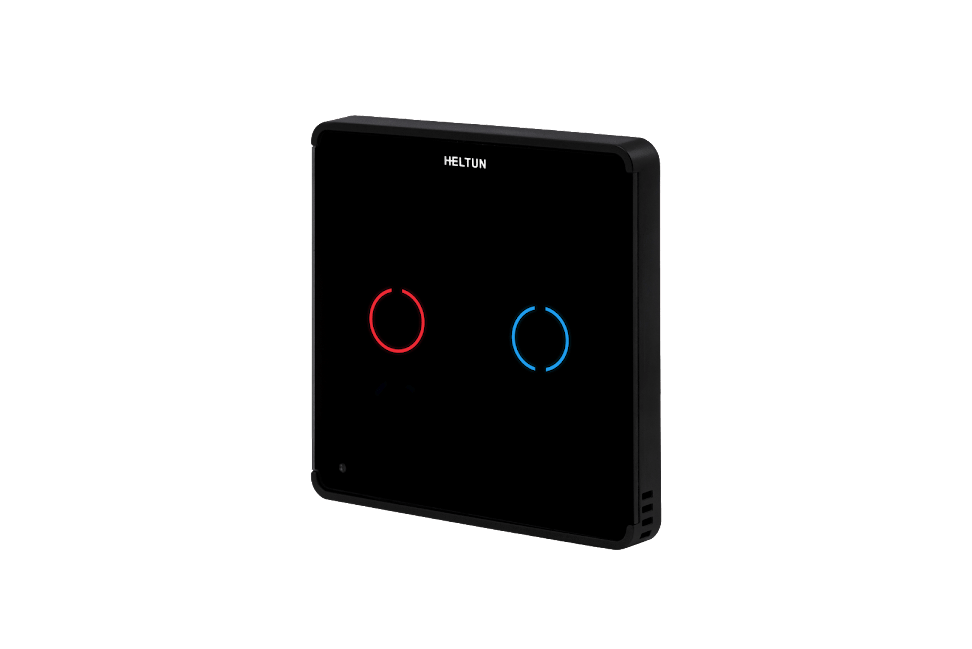

HELTUN Touch Panel Switch Duo

HELTUN Touch Panel Switch Duo

HE-TPS02-WW
£177.60
£177.60
Sale Sold out
Tax included.
Color
HELTUN HE-TPS Advanced Programmable Touch Panel Switch brings "Impossibly Smart" capabilities to your home lighting, electric outlets, or motorized blinds, door locks, gates, and valves. It replaces an existing in-wall switch and brings over-the-Internet monitoring, control, and advanced programmability. The Touch Panel is "Impossibly Thin" on the wall yet packed with features to provide the ultimate in control and convenience.

Controls 2 AC and DC devices, even at the same time
Don’t buy extra sensors: ambient light, humidity, and room temperature are already included to create custom scenarios
Auto adjust backlight brightness based on ambient light level
Adjust touch sensitivity the way you want
Work with any Z-Wave hub: you’re free to integrate it into your existing system or create your own based on your personal requirements

Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library


View full details

EASY INSTALLATION

HELTUN Touch Panel Switches can be easily installed into any standard electrical junction box (square or round).
Installation must only be performed by someone trained in handling high voltage electrical systems.

Image in a Row

TECHNICAL SPECIFICATIONS

  • Front frame dimensions: 89x89x9mm
  • Back dimensions: 53x53x28mm
  • 3 frame colors: Silver, Black, White
  • 2 glass colors: White, Black (Yellow, Green, Red, Blue on request)
  • 1 sensitive capacitive touch button
  • Red and blue color LED back light for the button
    10 adjustable brightness levels for the button backlight
  • Power supply: 85VAC – 265VAC, 50Hz/60Hz or 24-48VDC
  • 1 relay with resistive load of up to 5A
  • 1 relay input, dry contact type
  • Relay life time: 100 000 switches
  • Z-Wave Frequency: All countries
  • Z-Wave SDK: V7.11.1
  • Z-Wave Plus module: ZGM130S

Features

Features

  • Security levels: Non-Secure, S0, S2, S2 authenticated
  • Smart Start inclusion
    Independent control of the relay and LED
  • The relay can be controlled by the touch button or via a Z-Wave network (Z-Wave controller)
  • The touch button can be used to run scenarios
  • The button backlight can be configured to indicate the state of relay output, touch button, associated device, mode of connected gateway
  • Embedded ambient light sensor
  • Embedded room temperature sensor
  • Embedded humidity sensor
  • Software energy consumption meter logic
  • Adjustable LCD brightness: Auto or Manual
  • Child lock
  • OTA firmware updates
  • Manual change of frequency

Features

Z-Wave

The touch button can be configured to control the relay output state as follows:

  • press the button and the relay output goes to an ON state only
  • press the button and the relay output goes to an OFF state only
  • press the button and the relay output inverts the state
  • press the button and the relay output goes to ON for the specified time, then changes back to OFF
  • press the button and the relay output goes to OFF for the specified time, then changes back to ON
  • when the button is held the relay output is ON, as soon as the button is released, the relay output state changes to OFF
  • when the button is held the relay output is OFF, as soon as the button is released, the relay output state changes to ON
