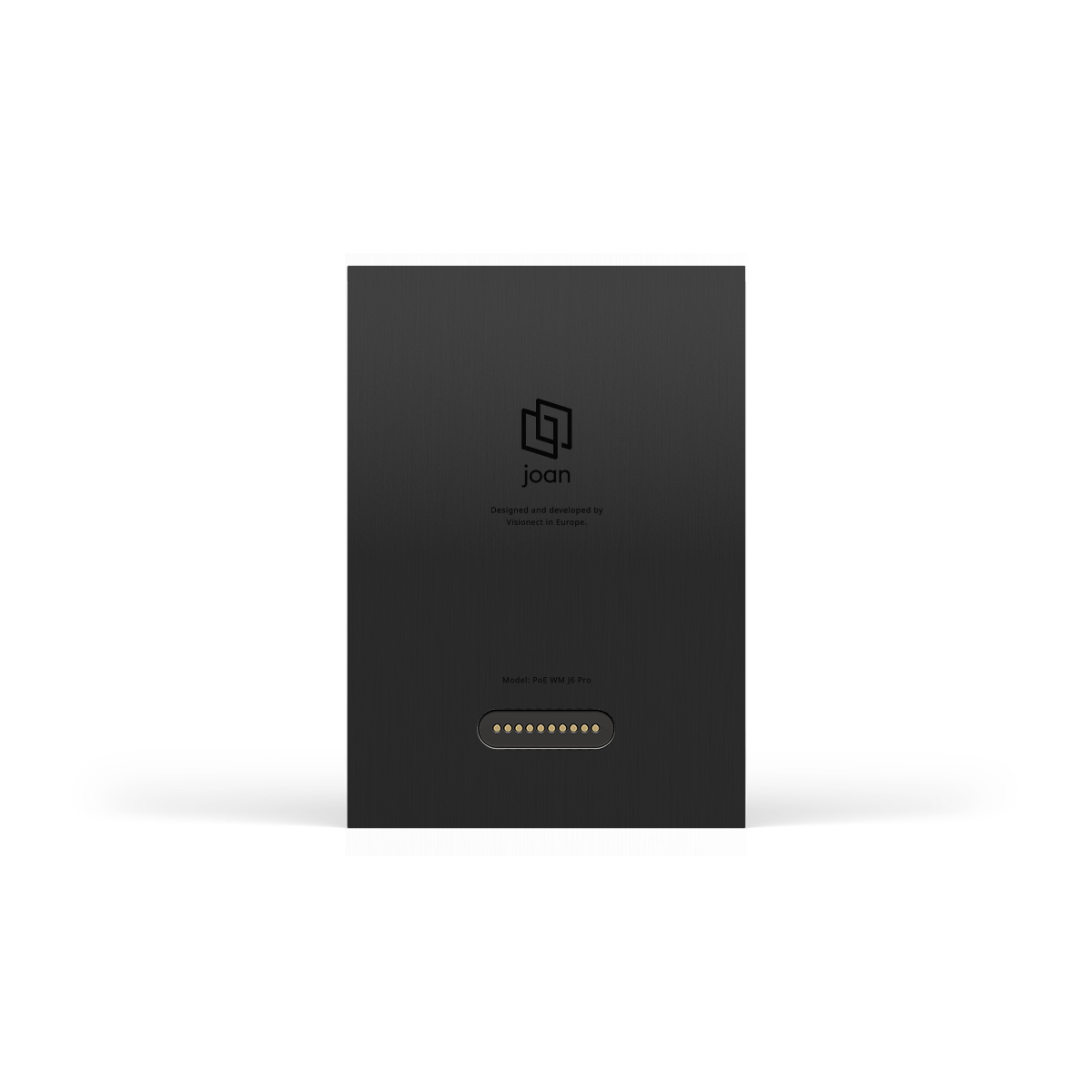

Joan 6 Pro PoE Wall Mount

This fully-wired optional Power over Ethernet dock, designed exclusively for Joan 6 Pro, provides constant power and ethernet communication instead of WiFi. It additionally displays room occupancy status – green for free, red for booked, and orange for the upcoming meeting.

Using the PoE wall mount with Joan 6 Pro provides many benefits simultaneously.
Ideal for companies with extra stringent security protocols.

Safe and stable
The PoE wall mount guarantees a secure data transmission and a continuous connection to the network.

Always charged
The fully wired optional PoE wall mount provides constant power to Joan 6 Pro.

Room occupancy status

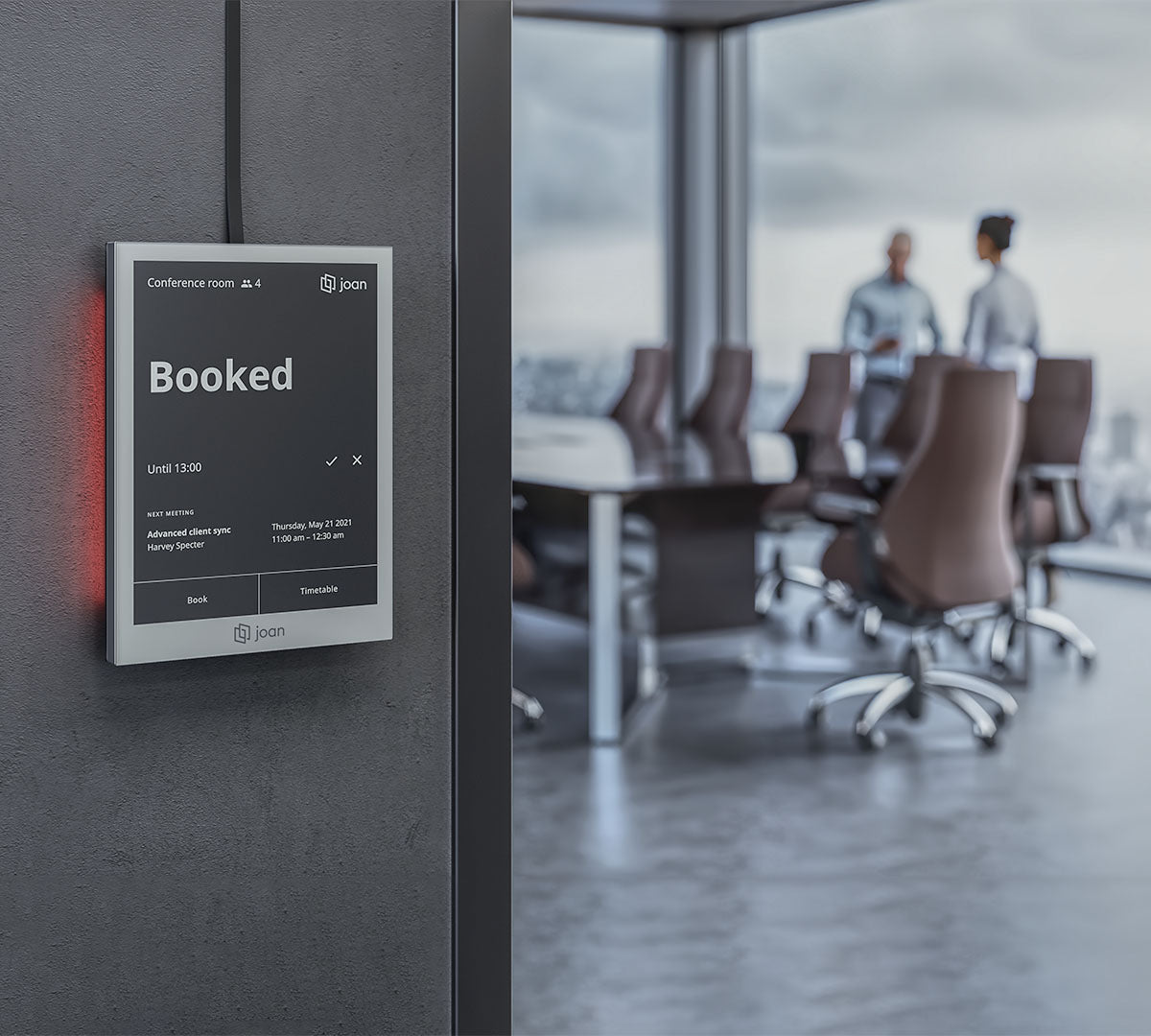

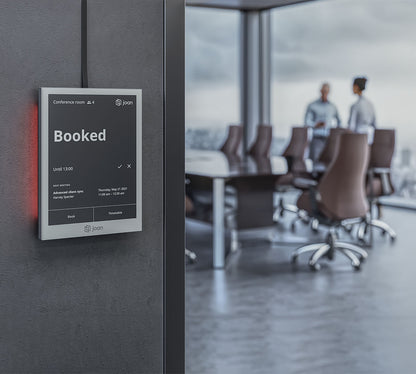

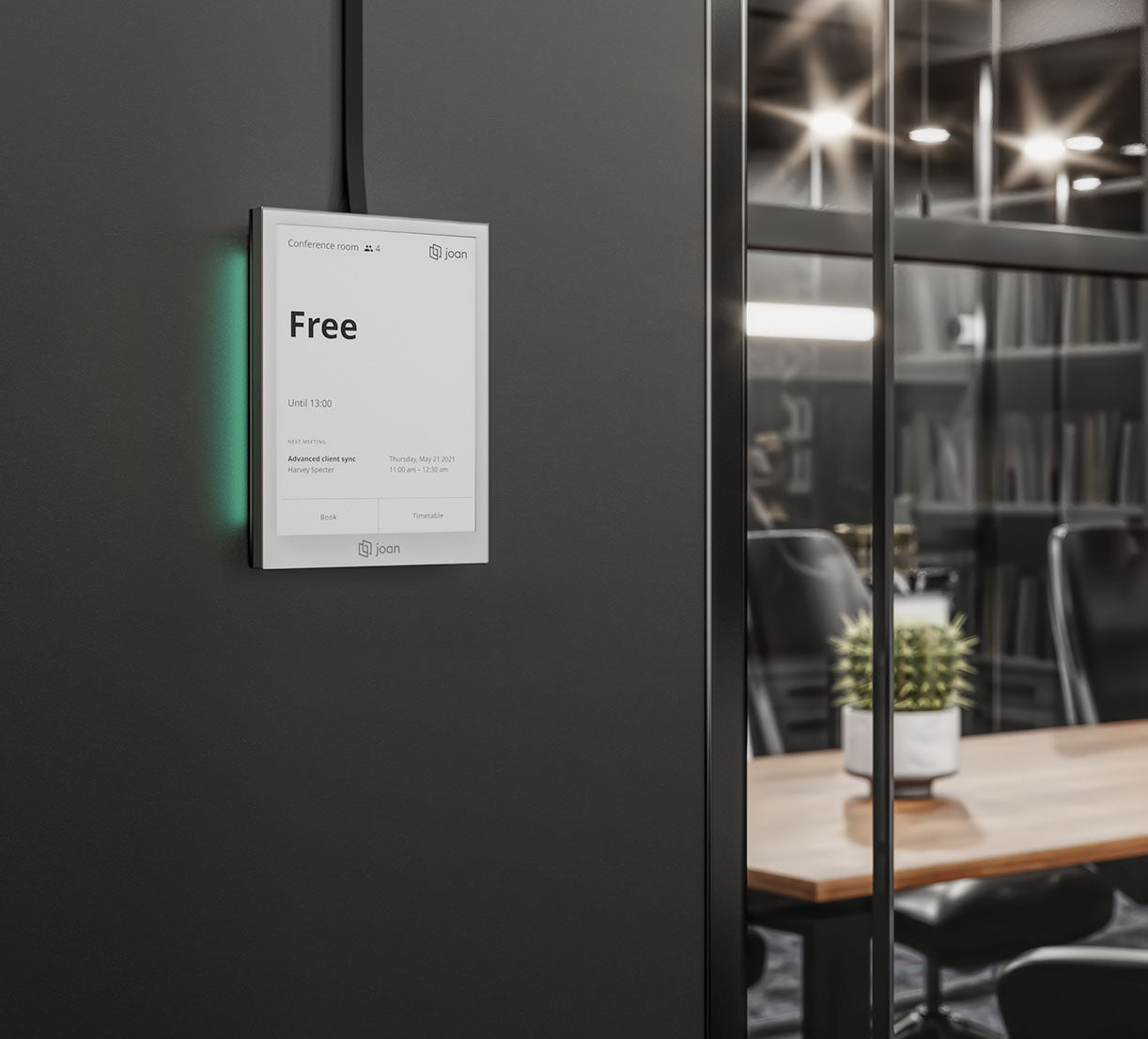

The side of the wall mount is equipped with LED lights, which provide occupancy information – green for free and red for booked.

Dimensions & Weight
Height: 130.2 mm (5.13 in)
Width: 92 mm (3.62 in)
Depth: 14 mm (0.55 in)

Technical specifications
High quality anodized aluminum casing
Low power ethernet 10/100 Mbps, IEEE 802.3u compliant: 100BASE-FX, 100BASE-TX, 10BASE-Te
PoE (Power over Ethernet), IEEE 802.3at (compatible with various PoE injectors)
RGB LED light
Output rating of 5 V, 1 A.
CAT5(e) or CAT6 cables should be used for connecting the Wall Mount. Additionally, we advise using AWG 26 or 28 UTP cables, because they have a smaller bend radius and enable a more smooth integration.

Environmental conditions
Operating and storage temperature range: 32°F to 113°F (0°C to +45°C)
