THE TECHNICAL BIT
Simple to install diagram for connecting to our wireless ceiling speaker or amplifier.

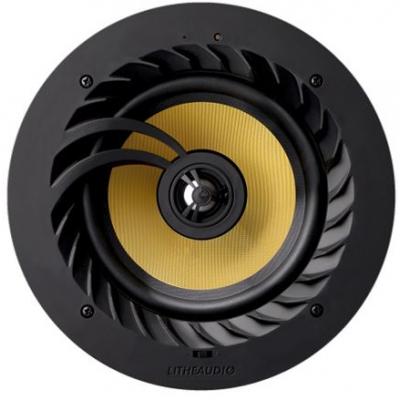

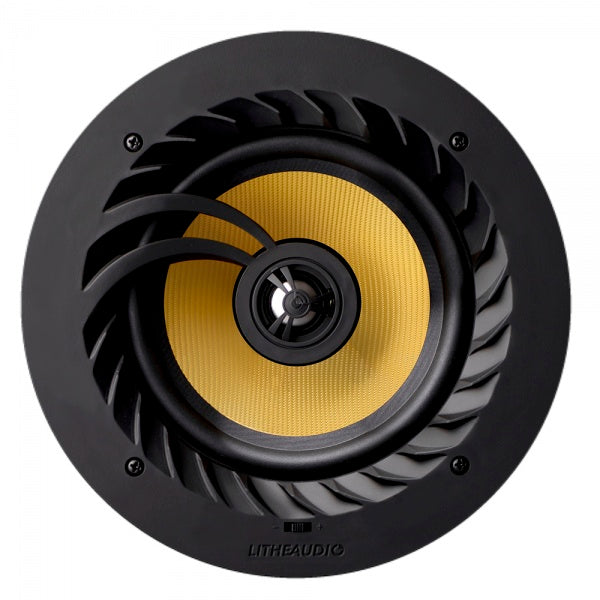

Audio spec
- Woofer: 6.5" Woven Glass Fiber Cone
- Tweeter: 0.75" Titanium Cone
- Mono/Stereo Switch
- Impedance: 8 Ohms
- Sound Quality THD+N 0.009%, 55Hz-20kHZ
- Sensitivity (1W/1m): 90dB
- Audio Sample Rate: 8Khz
Speaker Specs
- 210mm cut-out diameter
- Weight: 3.7kg
- Dimensions: (W x D) 230 x 97 mm
- Limited Warranty: 2 Year
Frequently Asked Questions
HOW TO FIX THE SPEAKER TO THE CEILING?
Using the 4 screws, the speakers have dog ear type fixings, that tighten up to the ceiling/wall material, to ensure a firm fixing.
DO THE SPEAKERS NEED TO BE CONNECTED TO SEPARATE AMPLIFIER?
Yes, via speaker wire (not supplied) these speakers are Passive only, meaning they DO NOT have amplifier or signal processing on board.
CAN THE CEILING SPEAKERS BE USED IN THE BATHROOM?
Yes only our bathroom rated version IP44 rated for bathroom use. Do not place speaker directly above shower unit, bath, sinks or radiators.
WHAT IS THE DEPTH REQUIRED OF THE CEILING SPEAKER?
The depth required is 87mm.
WHAT SIZE HOLE IS REQUIRED FOR CUT OUT?
The cut out diameter is 210mm, a cutting template is supplied inside box.
