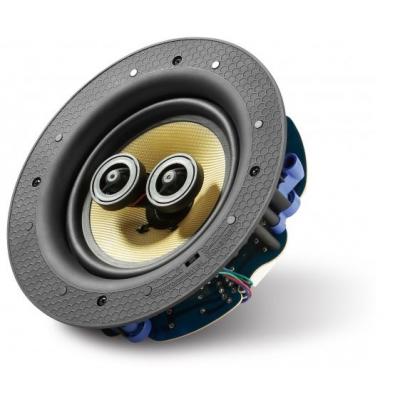

Specification
- RMS Power: 60W RMS
- Impedance: 8+8 Ohms Woofer: 6.5” (165mm)
- Woven Glass Fiber Cone
- Dual tweeters: 0.75” (19mm)
- Titanium Domes Frequency: 55Hz-20kHz
- Sensitivity (1W/1M): 90dB)
- Dimension: 227 x 87mm (8.9” x 3.4” Inch)
- Cut out diameter: 210mm (8.3” Inch)
- Mounting depth: 87mm (3.4” Inch)
Frequently Asked Questions
HOW TO FIX THE SPEAKER TO THE CEILING?
Using the 4 screws, the speakers have dog ear type fixings, that tighten up to the ceiling/wall material, to ensure a firm fixing.
DO THE SPEAKERS NEED TO BE CONNECTED TO SEPARATE AMPLIFIER?
Yes, via speaker wire (not supplied) these speakers are Passive only, meaning they DO NOT have amplifier or signal processing on board.
CAN THE CEILING SPEAKERS BE USED IN THE BATHROOM?
Yes only our bathroom rated version IP44 rated for bathroom use. Do not place speaker directly above shower unit, bath, sinks or radiators.
WHAT IS THE DEPTH REQUIRED OF THE CEILING SPEAKER?
The depth required is 87mm.
WHAT SIZE HOLE IS REQUIRED FOR CUT OUT?
The cut out diameter is 210mm, a cutting template is supplied inside box.
