Lithe Audio

Lithe Audio IO1 Indoor & Outdoor Speaker - Active

Lithe Audio IO1 Indoor & Outdoor Speaker - Active

LIT06800
Regular price £600.00
Regular price Sale price £600.00
Sale Sold out
Tax included.
Variation
Color

The iO1 speaker offers versatile usage both indoors and outdoors, featuring six different orientations for optimal placement. Enjoy the flexibility of connecting to the speakers either wirelessly or through a data cable. With its integrated powerful amplifier and comprehensive connectivity options, this active surface mount speaker ensures exceptional audio quality and effortless installation convenience.
EAN # : 5060544556635

Features
Type On-Wall
Speaker Type On-Wall Speaker
Speaker Series iO1
Bass/Mid Unit 2 x 3" Waterproof Coated Paper Cone
Tweeter 0.75" Waterproof Coated Paper Cone
Frequency Response 60Hz-20Khz
Impedance 4 Ohms
Sensitivity 82 dB
Output Wattage 100 Watts
IP Rating IPX6
Dimensions (D x W x H) 100 x 170 x 465 mm
Warranty 2 Year
View full details

One Speaker. Six Ways.®

To ensure complete satisfaction, we have created an interactive experience allowing you to visualise our speakers in your space.
Tap the AR icon on the right and view the IO1 speaker in your home.


THE TECHNICAL BIT

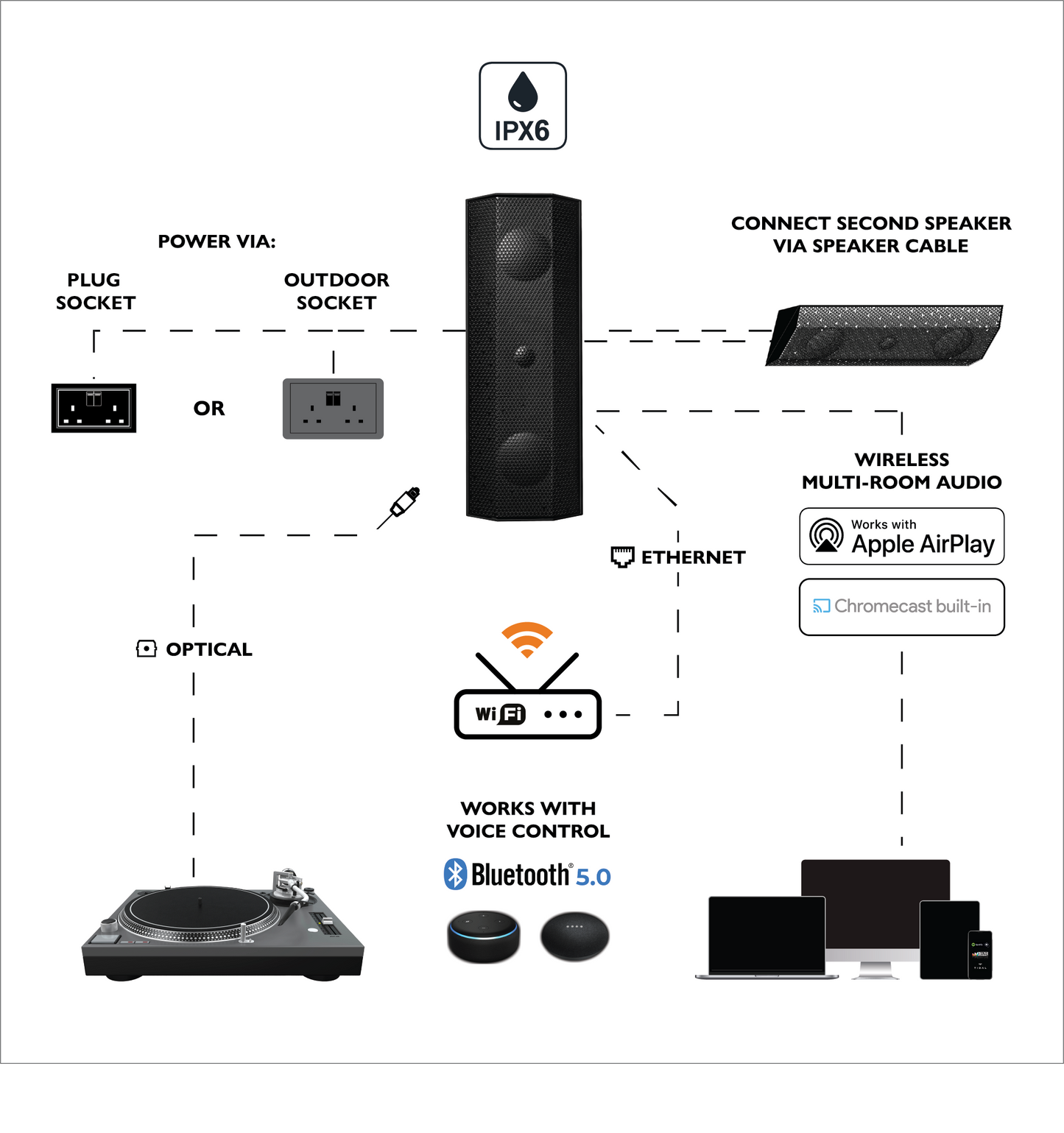

Simply power your speakers from a standard or outdoor electrical outlet. Connect your TV or turntable, for example, through our hardwired connections and stream your music wirelessly from your phone or tablet.

Features

Audio Spec

  • RMS Power: 100W RMS (2x 50W)
  • Frequency Response (-3dB) 60Hz - 20kHz
  • Frequency Range (-10dB) 38Hz - 20kHz
  • Impedance: 4 Ohms nominal (8 8)
  • Sound Quality THD+N <0.01%
  • Sensitivity (1W/1m): 82dB
  • Coverage (1 - 4kHZ): Vertical 100 degree / Horizontal 170 degree
  • Type: CLass D (Digital)
  • Audio Compression: 192kHz / 24 bits

Features

Speaker Specs

  • Dimensions: (H X W X D) 465 X 170 X 100mm
    (18.3 X 6.7 X Dimensions: (H X W X D) 465 X 170 X 100mm
    (18.3 X 6.7 X 3.9in)
  • Power Input Supply: 100 - 240V, 50/60Hz / 2.5A
  • Colour: Matt Black or White
  • Woofer: 2 x 3" Waterproof Coated Paper Cone
  • Tweeter: 0.75" Waterproof Coated Silk Dome
  • Operating Temperature: -10C to 50C (-50F - 122F)
  • Storage Temperature: -20C to 60C (-68F - 140F)
  • Net Weight: 3.7kg (8.1lbs) (Single)
  • IP Rating: IP66
  • Housing Material: ABS+PC (UL f1/f2 Certification Standard UL746C-V0)
  • Grille: Aluminium (UV Powder Coating)
  • 2 Year Warranty3.9in)
  • Colour: Matt Black or White
  • Woofer: 2 x 3" Waterproof Coated Paper Cone
  • Tweeter: 0.75" Waterproof Coated Silk Dome
  • Weight: 3.2kg (7lbs) (Single)
  • IP Rating: IP66
  • Grille: Aluminium (UV Powder Coating)
  • Connectivity: Speaker Terminals
  • 2 Year Warranty

Frequently Asked Questions

HOW MANY WAYS CAN YOU MOUNT THE IO1?

There are 6 ways you can mount the speaker:
1) Directly on a corner
2) Mount in a corner
3) Mount the speaker on a flat wall
4) As a soundbar (Horizontal Mode) as a Countertop speaker.
5) Pendent mount via Eyelet Kit (Sold Separately) enabling suspending from ceiling or above.
6) Using the add-on garden spike (Sold Separately), mount the speaker directly into the soft ground.

WHAT CAN I PLAY ON THE SPEAKERS?

The IO1 speakers have Airplay 2, Chromecast and Spotify Connect built in. So, you can wirelessly play across your network via your Android or IOS device. You can also use Multi-room Audio with other Airplay 2 or Chromecast speakers! The IO1 also has Bluetooth and Optical inputs for you to use to connect an independent source.

HOW DO I ADJUST THE OPTICAL VOLUME?

So as an Optical input is a fixed volume rate, this means that the volume will not be able to change via the connected device like a TV. You will need to adjust the volume via the Lithe Audio APP using the volume bar to adjust.

HOW MANY PASSIVE SPEAKERS CAN YOU ADD TO A MASTER IO1?

You can only have one Passive IO1 connected to the Master IO1. If you want more IO1 speakers, you will need 1 Passive for 1 Master and then you can group all the speakers via Airplay and Chromecast to have them play at unison. Example 4 speaker setup: Require 2 Pairs (Master + Slave).

HOW MANY IO1 SPEAKERS DO YOU RECOMMEND?

We recommend a pair of IO1 speakers, you shall need a pair of IO1 speakers if you want stereo audio in rooms/spaces of 4m x 4m, to 7m x 5m.  The same applies outdoors. The key is the listening area and positioning of the speakers. We offer a speaker placement service to help you https://www.litheaudio.com/speaker-placement-support.html

HOW DO I ADJUST THE IO1 SOUND TO SUIT THE MOUNTING METHOD?

Using the Lithe Audio APP, you can adjust the EQ settings for the IO1 speaker. There are presets which we have fine tuned which are Outdoor, Indoor and Pendent. So, depending how you have your speaker setup, select the corresponding Preset. You can also adjust the Treble and pitch for further tuning.

CAN THE IO1 BE LEFT OUTSIDE ALL YEAR ROUND?

Yes, our IO1 speaker is IP66 rated, so can be left outdoors fully weatherproof.
