Nice Smoke Control

Nice Smoke Control

301617340301
£81.31
£81.31
Sale Sold out
Tax included.

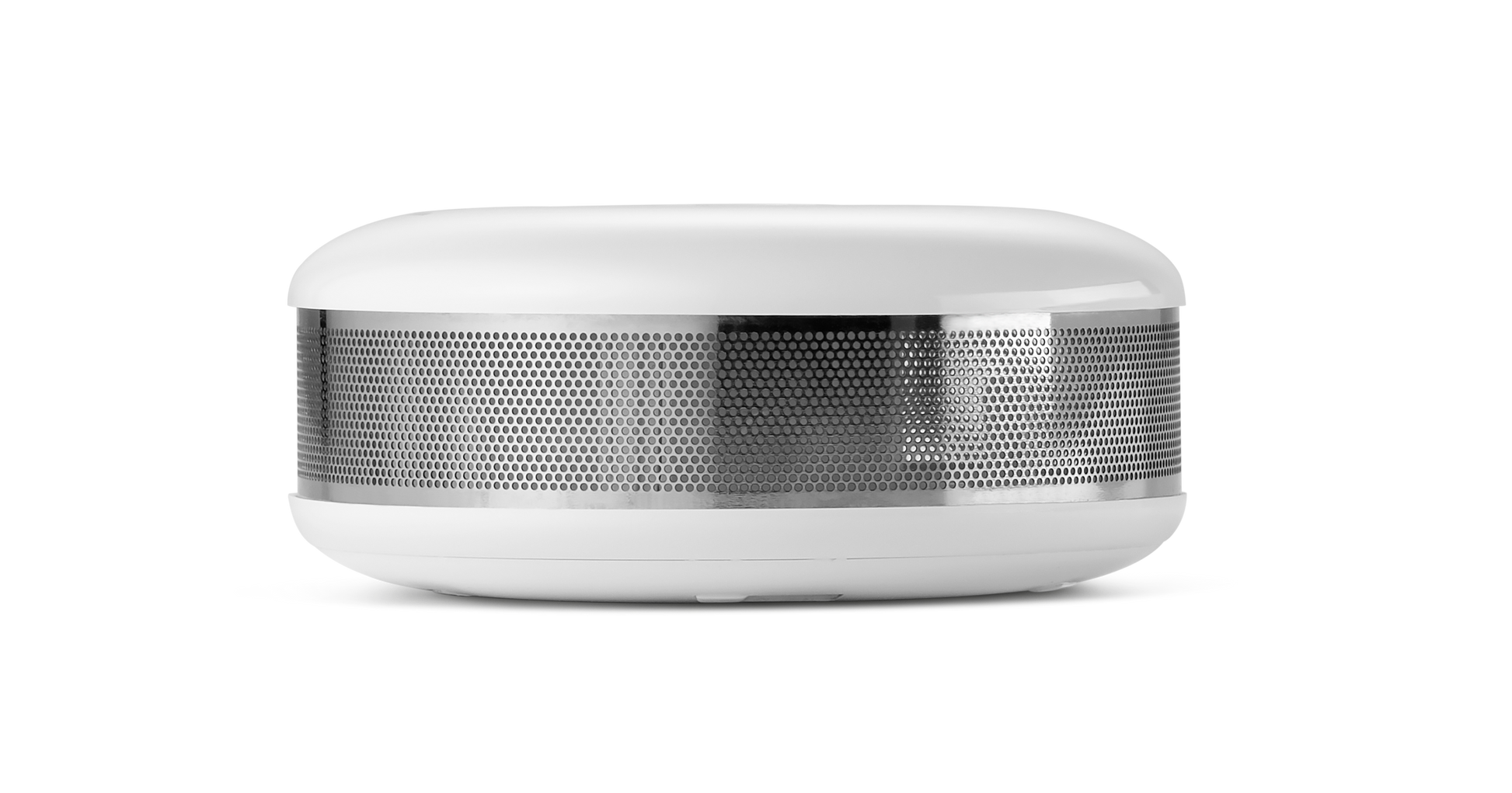

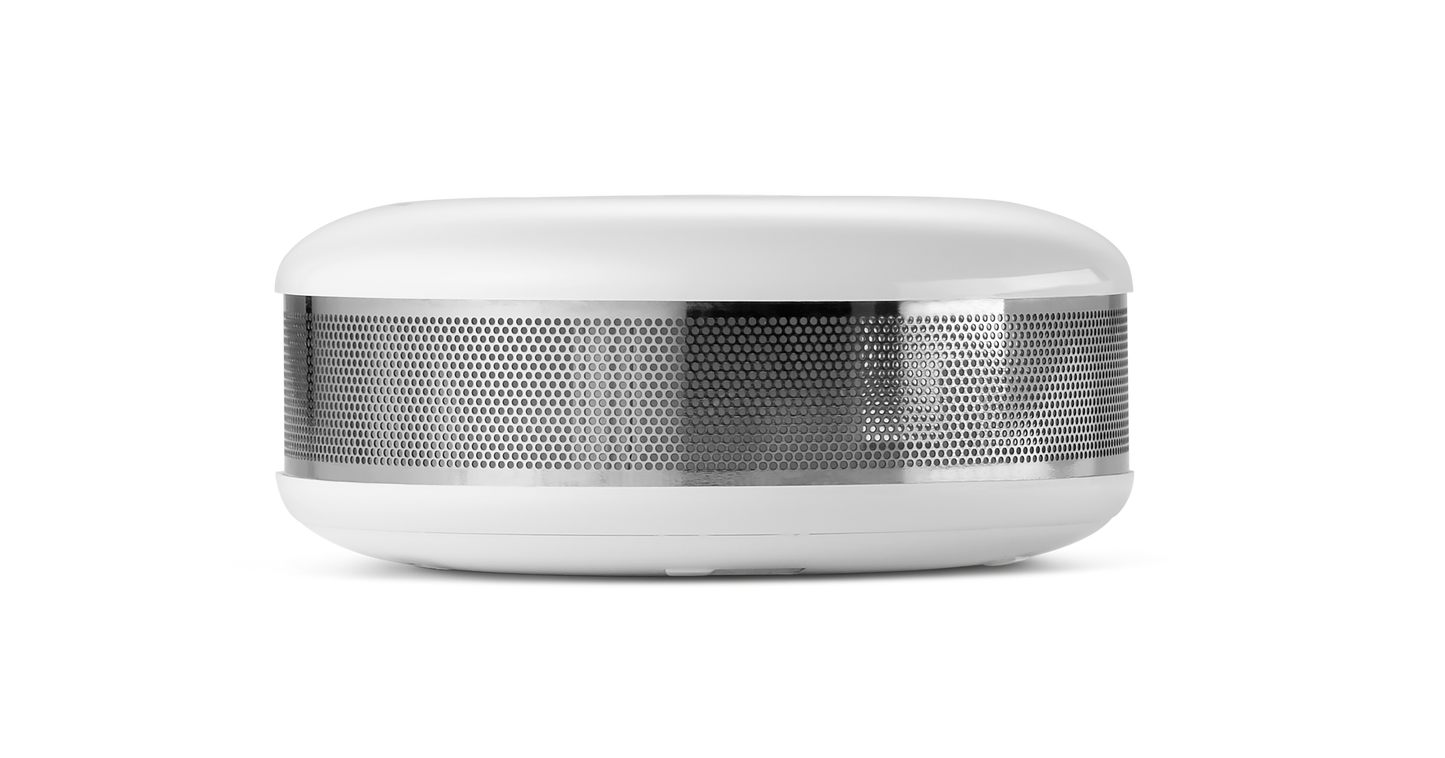

A compact device incorporating both photoelectric and temperature sensors, it functions to swiftly detect the presence of smoke or an initial fire outbreak. The device is designed to be lightweight and can be powered by batteries, making it suitable for ceiling installation. When smoke is detected, the device triggers an acoustic signal, activates a flashing LED, and transmits pertinent information to the Z-Wave network.

In the event that the smoke sensor identifies a hazardous situation, it can initiate an alarm scenario. This scenario prompts an immediate alert to be sent to the user's mobile device, regardless of their location.

The device includes an integrated temperature sensor that can trigger the alarm when high temperatures are detected. This ensures that occupants are alerted even if a fire occurs without producing visible smoke.

A distinguishing feature of this equipment is its capacity to analyze data from previous events. This functionality enables the device to learn from past occurrences, aiding in the prevention of similar dangers in the future.

View full details

Features

System Compatibility:

  • Z-Wave
  • Z-Wave Plus

Sensitivity:

Features 3 levels of sensitivity, compliant with EN 14604:2005 standards.

Security Measures:

  • Comes with a built-in housing opening detector
  • Ensures the housing cannot be closed without a battery for safety.

Alert Systems:

  • Signaled through a loud sound, LED indicator, and a message to the Z-Wave network
  • Notifies of temperature increases beyond a preset threshold.

Diagnostics and Maintenance:

  • Runs a diagnostic efficiency test every 10 seconds
  • Manual self-test function.

Data Recording:

Records all temperature and smoke readings in an internal memory for quick reference.

TECHNICAL SPECIFICATIONS

Power Supply: 12 - 24 VDC

Battery Type: CR123A (included)

Maximum Output Voltage:

  • 24 VDC
  • 20 VAC

Compliance Standards:

  • European standards RED 2014/53/EU
  • RoHS compliant according to 2011/65/EU.

Operating Temperature (°C): 0 - 40 (Min/Max)

Temperature Measurement Range (°C): -20 - 100 (Min/Max)

Precise Temperature Measurement: ±0.5°C (within 0 - 40°C range)

Radio Protocol: Z-Wave (500 series)

Radio Frequency (MHz):

  • EU: 868.4, 869.85 MHz
  • US: 908.4, 916.0 MHz
  • ANZ: 921.4, 919.8 MHz
  • RU: 869.0 MHz

Radio Range (m): Up to 40m (depending on building structure)

Dimensions (mm): 72 Ø x 28 h
