Ubiquiti

UA-LITE

UA-LITE

UBIUALITE
£109.72
£109.72
Sale Sold out
Tax included.

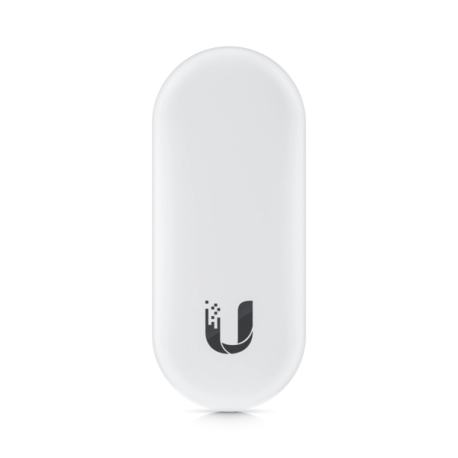

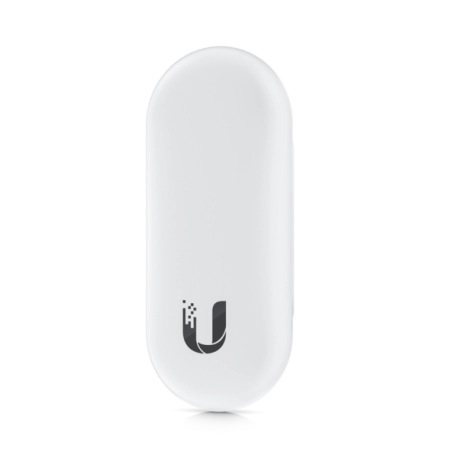

UniFi Access Reader Lite is a modern NFC and Bluetooth reader, a part of the UniFi Access solution.

The UniFi Access Reader Lite has been designed for convenient use and secure access. The PoE powered reader is easy to install and supports the latest NFC security standards including AES-128 encrypted MIFARE DESFire. Unlocking the door is quick and secure with NFC card or with mobile app.

Features:

Elegantly designed NFC and Bluetooth reader
802.3af PoE powered by UniFi Access Hub
Advanced NFC credentials, including MIFARE DESFire
Built-in security element chip
For the best NFC security, use with our UA-Card
Mobile access with app (future software release)
UA-Lite will be shipped in silver color

Note: UniFi Dream Machine Pro or Cloud Key Plus is required to run UniFi Access

Mfr. Part #: UA-LITE
View full details

INSTALATION TUTORIAL

Build Features

Mechanical Specifications

  • Dimensions: 94.91 x 40.00 x 31.10 mm (3.74 x 1.57 x 1.22")
  • Weight: 67 g (2.36 oz)
  • Enclosure material: Polycarbonate
  • Mounting options: Wall-mount, gang box mount (The UA-Reader Lite must be installed either indoors or under a roof eave outdoors.)
  • Weatherproofing: IP54

Hardware Specification

  • Networking interface: 10/100 MbE
  • Max. power consumption: 6W
  • Power method: PoE
  • Button: (1) Factory reset
  • LEDs: White/Blue
  • Connectivity: Ethernet, BLE 4.1NFC frequency13.56 MHz
  • NFC reading range: <30 mm
  • NFC standards: ISO 14443A, 14443B, 15693
  • NFC technology: NFC Tag 1, 2, 3, 4, 5MIFARE Classic | MIFARE Plus | MIFARE Ultralight | MIFARE DESFire
  • Operating temperature: -20 to 40° C (-4 to 104° F)
  • Operating humidity: 5 to 90% noncondensing
  • Certifications: CE, FCC, IC
