Ubiquiti

UAP-AC-LR-5

UAP-AC-LR-5

UBIUAPACLR5
£439.76
£439.76
Sale Sold out
Tax included.

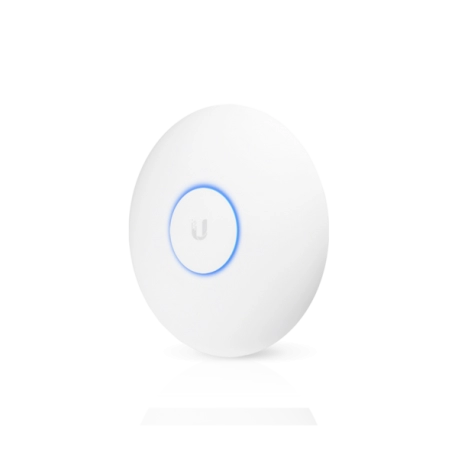

The Ubiquiti UniFi UAP-AC-LR-5 is ideal for long-range deployments, the
UAP AC LR offers simultaneous, dual-band operation, with 3x3 MIMO in
the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The antenna gain
of the Ubiquiti UniFi UAP-AC-LR-5 performs better than one-way, high
transmit power does for connecting distant clients. (5 Pack - Does Not
Include PoE Injectors).

The Ubiquiti UAP-AC-LR-5 is a UniFi Access Point (AP) that provides long range, dual-band 802.11ac Wi-Fi coverage with speeds of up to 1300 Mbps in the 5GHz band and up to 450 Mbps in the 2.4GHz band. It has a sleek, compact design that allows for easy installation and can be mounted on a wall or ceiling. The UAP-AC-LR-5 is designed to work with the UniFi Network Controller software, which allows administrators to manage multiple UniFi APs and other UniFi networking devices from a single interface.

Mechanical Specification
Dimensions Ø175.7 x 43.2 mm (Ø6.9 x 1.7")
Weight Without mount: 240 g (8.5 oz)
With mount: 315 g (11.1 oz)



Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)


Mfr. Part #: UAP-AC-LR-5
View full details

Deployment

Build Features

Hardware Specifications

  • Networking interface: (1) GbE port
  • Management interface: Ethernet | Bluetooth
  • Power method: PoE24V passive PoE (Pairs 4, 5+; 7, 8 return)
  • Power supply: UniFi PoE switch24V, 0.5A Gigabit PoE adapter (5-packs do not come with PoE adapters.)
  • Max. power consumption: 6.5W
  • Max.TX power: 2 GHz: 24 dBm | 5 GHz: 22 dBm
  • MIMO: 2.4 GHz: 3 x 3 | 5 GHz: 2 x 2
  • Throughput rate: 2.4 GHz: 450 Mbps | 5 GHz: 867 Mbps
  • Antenna gain: 2 GHz: 3 dBi | 5 GHz: 3 dBi
  • Button: Factory reset
  • Mounting: Wall/ceiling (Included)
  • Operating temperature: -10 to 70° C (14 to 158° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

Software Specification

  • WiFi standards: 802.11 a/b/g/n/r/k/v/ac
  • Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Power save: Supported
  • WMM: Voice, video, best effort, and background
  • Concurrent clients: 250+
