Ubiquiti

UAP-AC-M-5

UAP-AC-M-5

UBIUAPACM5
£433.68
£433.68
Sale Sold out
Tax included.

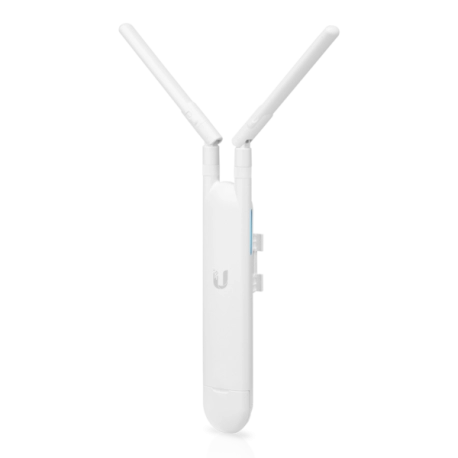

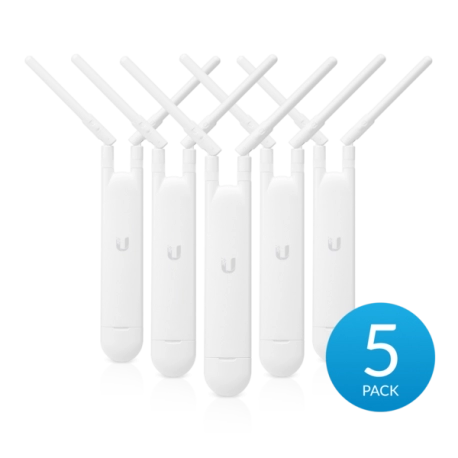

The Ubiquiti UniFi UAP-AC-M Access Point features high-performance, wide-area WiFi with UniFi Mesh Technology. The UniFi AC Mesh is also weather resistant, fitting seamlessly into any indoor or outdoor environment. It includes adustable, dual-band omni antennas for outdoor or indoor omnidirectional coverage. You can also use a 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous access points and clients, or add a 5 GHz sector antenna for broad, outdoor coverage ( 5 Pack - Does Not Include PoE Injectors)

Mechanical Specification
Dimensions 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight 152 g (5.4 oz)



Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Mfr. Part #: UAP-AC-M-5
View full details

Build Features

Hardware Specifications

  • Networking interface: (1) GbE port
  • Management interface: Ethernet | Bluetooth
  • Power method: 24V passive PoE (Pairs 4, 5+; 7, 8 return) | PoE alternative A (Pairs 1, 2+; 3, 6 return)
  • Power supply: Gigabit PoE adapter 24V, 0.5A (5-packs do not come with PoE adapters.)
  • Supported voltage range: 44—57V DC
  • Max. power consumption: 8.5W
  • Max. TX power: 2.4 GHz: 20 dBm | 5 GHz: 20 dBm
  • MIMO: 2.4 GHz: 2 x 2 | 5 GHz: 2 x 2
  • Throughput rate: 2.4 GHz: 300 Mbps | 5 GHz: 867 Mbps
  • Antenna gain: 2.4 GHz: 3 dBi | 5 GHz: 4 dBi
  • Button: Factory reset

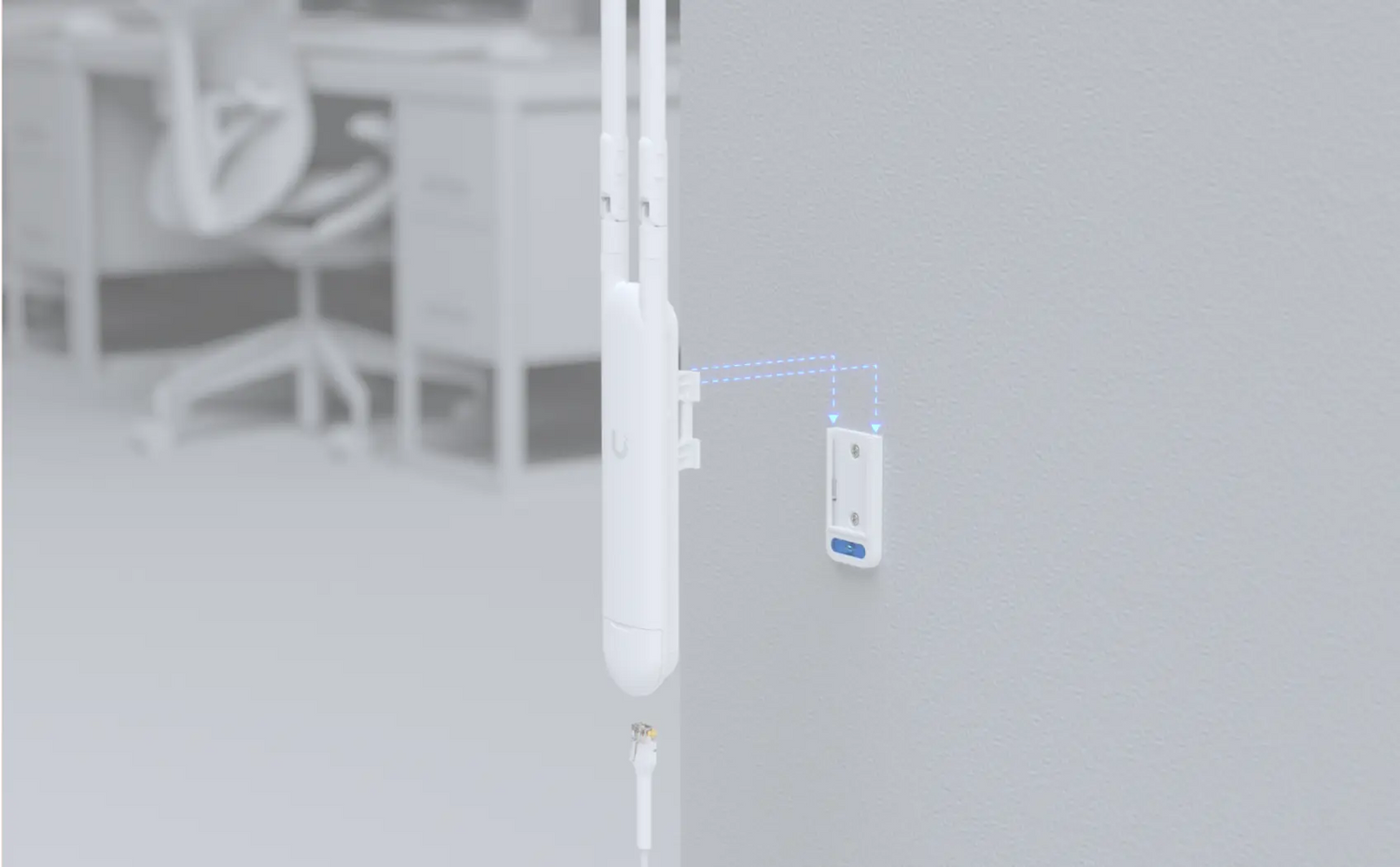

  • Mounting: Wall/pole/fast-mount (Included)
  • Operating temperature: -30 to 70° C (-22 to 158° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC, UKCA

Software Specification

  • WiFi standards: 802.11a/b/g/n/ac
  • Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • VLAN: 802.1QBSSIDUp to 4 per radio
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Power save: Supported
  • WMM: Voice, video, best effort, and background
  • Concurrent clients: 100+
