Ubiquiti

UAP-NANOHD-5

UAP-NANOHD-5

UBIUAPNANOHD5
Regular price £789.06
Regular price Sale price £789.06
Sale Sold out
Tax included.

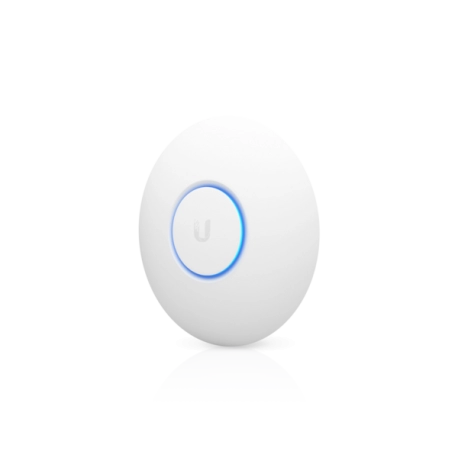

The Ubiquiti UniFi nanoHD features simultaneous, dual-band, 4x4
MU-MIMO technology and convenient 802.3af PoE compatibility. The
compact design delivers a cost-effective combination of value and
performance. The UAP-NanoHD can also be powered by an 802.3af PoE
compliant switch (5 Pack - Does Not Include PoE Injectors).

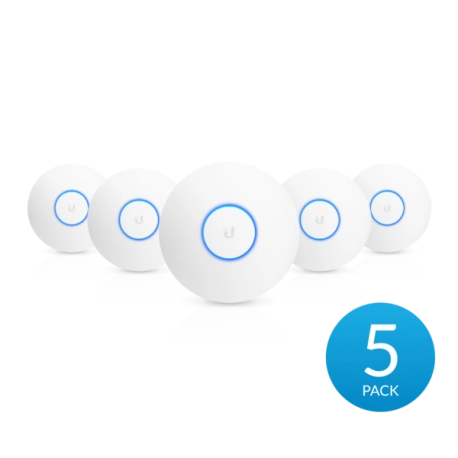

The Ubiquiti UAP-NANOHD-5 is a 5-pack of UniFi NANOHD access points. UniFi NANOHD is a compact and cost-effective 802.11ac Wave 2 access point that supports MU-MIMO technology and speeds of up to 1733Mbps. It is designed for high-density environments and can support up to 500 clients per unit. The UAP-NANOHD-5 is easy to install and manage using the UniFi Network Controller software, which can be run on a cloud-based platform, locally, or on a virtual machine. This access point is ideal for small to medium-sized businesses, schools, and homes looking for an affordable and high-performance Wi-Fi solution.

Mechanical Specification
Dimensions Ø160 x 32.7 mm (Ø6.3 x 1.3")
Weight Without mount: 300 g (10.6 oz)
With mount: 315 g (11.1 oz)



Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)


Mfr. Part #: UAP-NANOHD-5
View full details

Deployment

Build Features

Hardware Specifications

  • Networking interface: (1) GbE RJ45 port
  • Power method: PoE
  • Power supply: UniFi PoE Switch
  • Max. power consumption: 10.5W
  • Supported voltage range: 44—57V DC
  • Max. TX power: 2.4 GHz: 23 dBm | 5 GHz: 26 dBm
  • MIMO: 2.4 GHz: 2 x 2 | 5 GHz: 4 x 4
  • Throughput rate: 2.4 GHz: 300 Mbps | 5 GHz: 1733 Mbps
  • Antenna gain: 2.4 GHz: 2.8 dBi | 5 GHz: 3 dBi
  • Button: (1) Factory reset
  • Mounting: Wall/ceiling (Included)
  • Operating temperature: -10 to 70° C (14 to 158° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC, cULus

Software Specifications

  • WiFi standards: 802.11 a/b/g/n/ac/ac-wave2
  • Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to 8 per Radio
  • WMM: Voice, video, best effort, and background
  • Concurrent clients: 200+
