Ubiquiti UAP-AC-SHD5

Product Overview

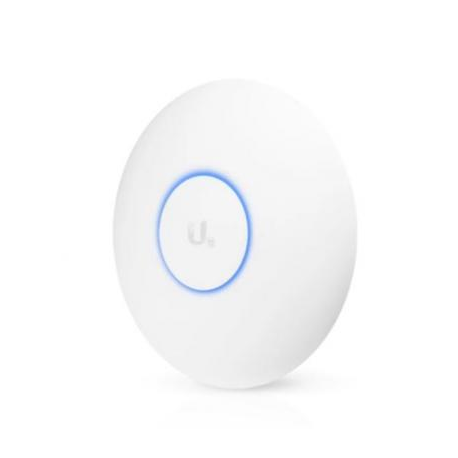

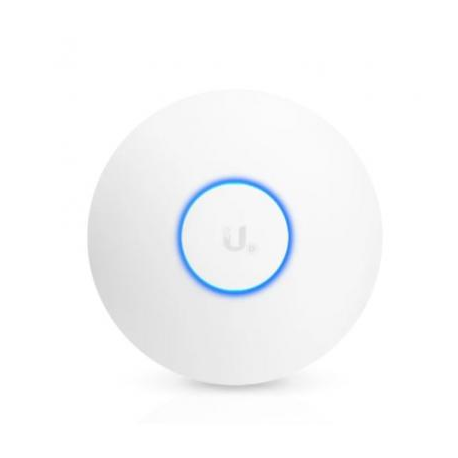

Build your Wi-Fi network with the UniFi® AC Secure High Density Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-SHD is an indoor/outdoor, 4x4 MU-MIMO 802.11ac Wave 2 dual-band access point, capable of throughput speeds of up to 2.5 Gbps and supporting over 500 concurrent users. Engineered from the ground up for superior network security, the UAP-AC-SHD features unparalleled Wi-Fi security utilizing a dedicated security radio with persistent threat management. The UAP-AC-SHD is the preferred access point for deployments requiring highly secure Wi-Fi with industry-leading multi-user performance.

Product Key Features

• Simultaneous Dual-Band 4x4 Multi-User MIMO.

• Four-Stream 802.11AC Wave 2 Technology.

• 5 GHz Band with Radio Rate of up to 1.7 Gbps.

• Dedicated Security Radio with Persistent Threat Management.

• 2.4 GHz Band with Radio Rate of 800 Mbps.

• 802.3at PoE+ Compatible.

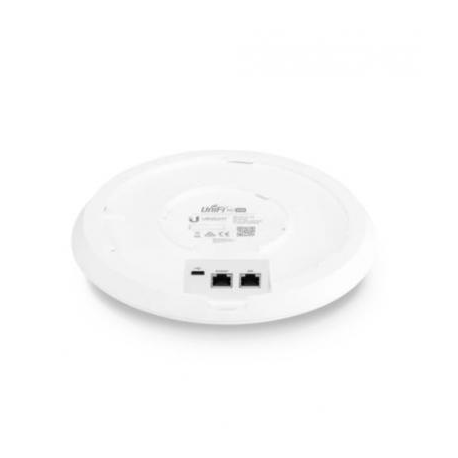

• (2) Gigabit Ethernet Ports.

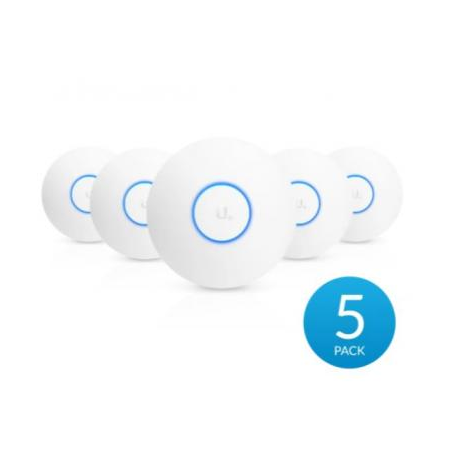

* 5 packs do not come with PoE injectors.

Product Specifications

• Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89").

• Weight: With Mounting Hardware: 830 g (1.83 lb), Without Mounting Hardware: 700 g (1.54 lb).

• Enclosure Characteristics: Outdoor UV Stabilized Plastic.

Hardware

• Processor Specs: Dual-core SMP Krait CPU at 1.4 GHz.

• Memory Information: 4GB DDR3.

• Management Interface: Ethernet or WiFi.

• Networking Interface: (2) 10/100/1000 Ethernet Ports.

• Radios: 2.4 GHz, 5 GHz, Security.

• Max. Power Consumption: 20W.

• Supported Voltage Range: 44VDC to 57VDC.

• Power Method: 802.3at PoE+.

• Power Supply: UniFi Switch (PoE).

• Power Save: Supported.

• Beamforming: Supported.

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

802.11w (PMF).

• BSSID: Up to 8 per Radio.

• Buttons: Reset.

• Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2.

• Antennas: 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each, 5 GHz: (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each.

• TX Power: 2.4 GHz: 6-25 dBm, 5 GHz: 6-25 dBm

• MIMO: 2.4 GHz: 4x4, 5 GHz: 4x4.

• Speeds: 2.4 GHz: 800 Mbps, 5 GHz: 1.7 Gbps

• Mounting: Wall/Ceiling (Kits Included).

• Operating Temperature: -10 to 70° C (14 to 158° F).

• Operating Humidity: 5 to 95% Noncondensing.

• Certifications: CE, FCC, IC.

Advanced Traffic Management

• VLAN: 802.1Q.

• Advanced QoS: Per-User Rate Limiting.

• Guest Traffic Isolation: Supported.

• WMM: Voice, Video, Best Effort, and Background.

• Concurrent Clients: 1000+.

Supported Data Rates (Mbps)

• Standard: Data Rates.

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps.

• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40).

• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80).

• 802.11b: 1, 2, 5.5, 11 Mbps.

• 802.11b: 6, 9, 12, 18, 24, 36, 48, 54 Mbps.

Mfr. Part #: UAP-AC-SHD5
