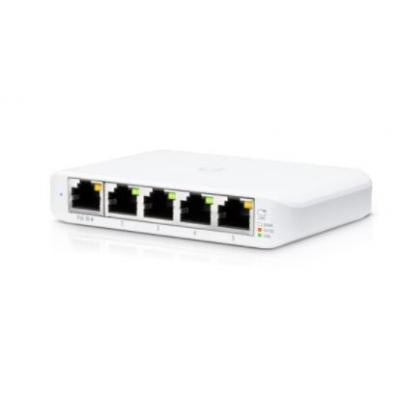

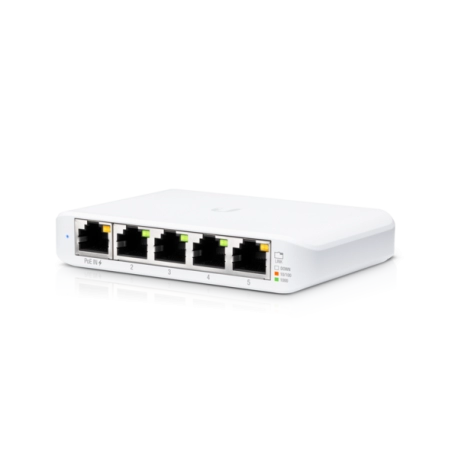

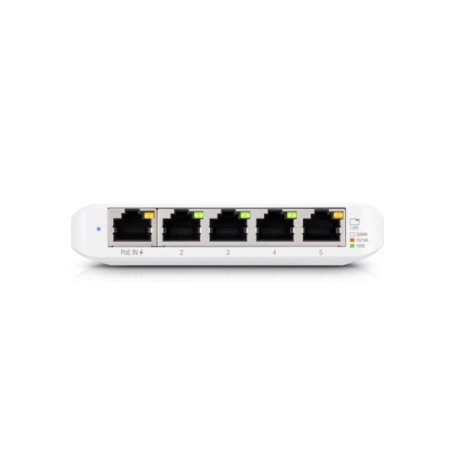

Ubiquiti USW-FLEX-MINI-3

Ubiquiti USW-FLEX-MINI-3

Regular price £80.58
Regular price Sale price £80.58
Sale Sold out
Tax included.

USW Flex Mini

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

The Ubiquiti USW-FLEX-MINI-3 is a pack of three compact and versatile managed Gigabit Ethernet switches, designed to deliver reliable and high-performance networking in a variety of settings. With its small size and flexible mounting options, it's an ideal solution for home offices, small businesses, and other environments where space is limited. The switches feature auto-sensing IEEE 802.3af/at PoE to power and connect compatible devices, as well as customizable VLANs, QoS, and other advanced features that allow for easy network management. With the Ubiquiti USW-FLEX-MINI-3, you can create a robust and reliable network with minimal effort and investment.

Mfr. Part #: USW-FLEX-MINI-3

View full details


Build Features

Technical Specifications


  • Dimensions: 107.2 x 70.2 x 21.2 mm (4.2 x 2.8 x 0.8")
  • Weight: 150 g (5.3 oz)
  • Enclosure material: Polycarbonate


  • System: Status
  • Ethernet: Speed/link/activity

Application Requirements

  • UniFi Network: Version 5.12.5 and late

Hardware Specification

  • Management interface: Ethernet In-Band
  • Networking interface: (5) GbE RJ45 ports
  • Total non-blocking throughput: 5 Gbps
  • Switching capacity: 10 Gbps
  • Forwarding rate: 7.44 Mpps
  • Power method: USB Type C, 5VPoE/PoE+, 44—57V DC, 0.05—0.04APower supply5V, 1A power adapter (Only single-unit packages include the 5V, 1A USB-C power adapter.)
  • Supported voltage range: USB Type C: 4.7—5.3V DC | PoE/PoE+: 44—57V DC
  • Max. power consumption: 2.5W
  • ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
  • Button: Factory reset
  • Operating temperature: -5 to 45° C (23 to 113° F)
  • Operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
