Ubiquiti

USW-FLEX-MINI

USW-FLEX-MINI

UBIUSWFLEXMINUK
£69.00
£69.00
Sale Sold out
Tax included.

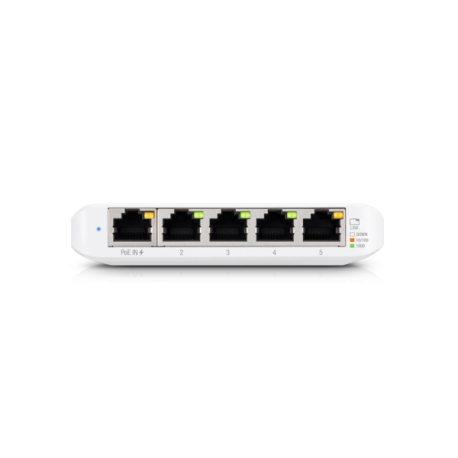

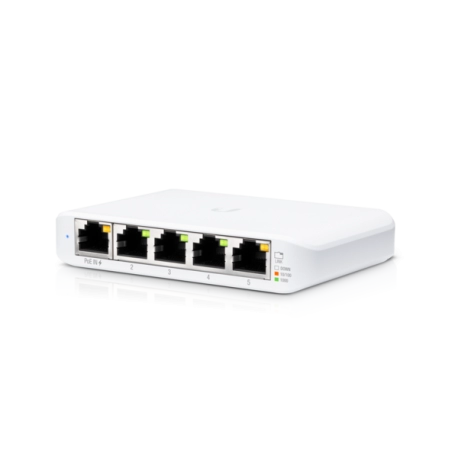

The Ubiquiti UniFi USW-Flex-Mini is a smart managed Gigabit switch. It
offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices.

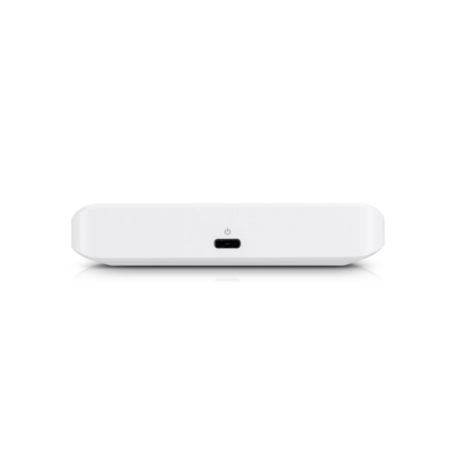

Power up the USW-Flex-Mini with the included USB Type-C power
adapter or with 802.3af PoE Ethernet in port 1.

The USW-Flex-Mini is a compact, entry-level smart switch produced by Ubiquiti Networks. It is part of the UniFi line of network devices and is designed for use in small to medium-sized networks. The "Flex-Mini" in its name refers to its compact size and flexible mounting options, which allow it to be mounted in a variety of locations, including on a wall or under a desk.

The USW-Flex-Mini switch has 5 Gigabit Ethernet ports, and supports Power over Ethernet (PoE), allowing you to power other PoE-compatible devices, such as access points or cameras, through the switch. It also supports advanced features, such as Quality of Service (QoS), which allows you to prioritize network traffic for important applications, and Spanning Tree Protocol (STP), which helps to prevent network loops and improves network stability.

In addition to its compact design and advanced features, the USW-Flex-Mini switch is also easy to manage and monitor through the UniFi Network Controller software. This software provides a centralized control panel for all of your UniFi devices, allowing you to monitor and manage your network from one location.

Overall, the USW-Flex-Mini is a compact, cost-effective, and feature-rich smart switch that is ideal for small to medium-sized networks, offering advanced features and a compact design.


Mfr. Part #: USW-FLEX-MINI

View full details

Deployment

Build Features

Technical Specifications

Mechanical

  • Dimensions: 107.2 x 70.2 x 21.2 mm (4.2 x 2.8 x 0.8")
  • Weight: 150 g (5.3 oz)
  • Enclosure material: Polycarbonate

LEDs

  • System: Status
  • Ethernet: Speed/link/activity

Application Requirements

  • UniFi Network: Version 5.12.5 and late

Hardware Specification

  • Management interface: Ethernet In-Band
  • Networking interface: (5) GbE RJ45 ports
  • Total non-blocking throughput: 5 Gbps
  • Switching capacity: 10 Gbps
  • Forwarding rate: 7.44 Mpps
  • Power method: USB Type C, 5VPoE/PoE+, 44—57V DC, 0.05—0.04APower supply5V, 1A power adapter (Only single-unit packages include the 5V, 1A USB-C power adapter.)
  • Supported voltage range: USB Type C: 4.7—5.3V DC | PoE/PoE+: 44—57V DC
  • Max. power consumption: 2.5W
  • ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
  • Button: Factory reset
  • Operating temperature: -5 to 45° C (23 to 113° F)
  • Operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
